PANDITO® Ultra-light DCP

Overview

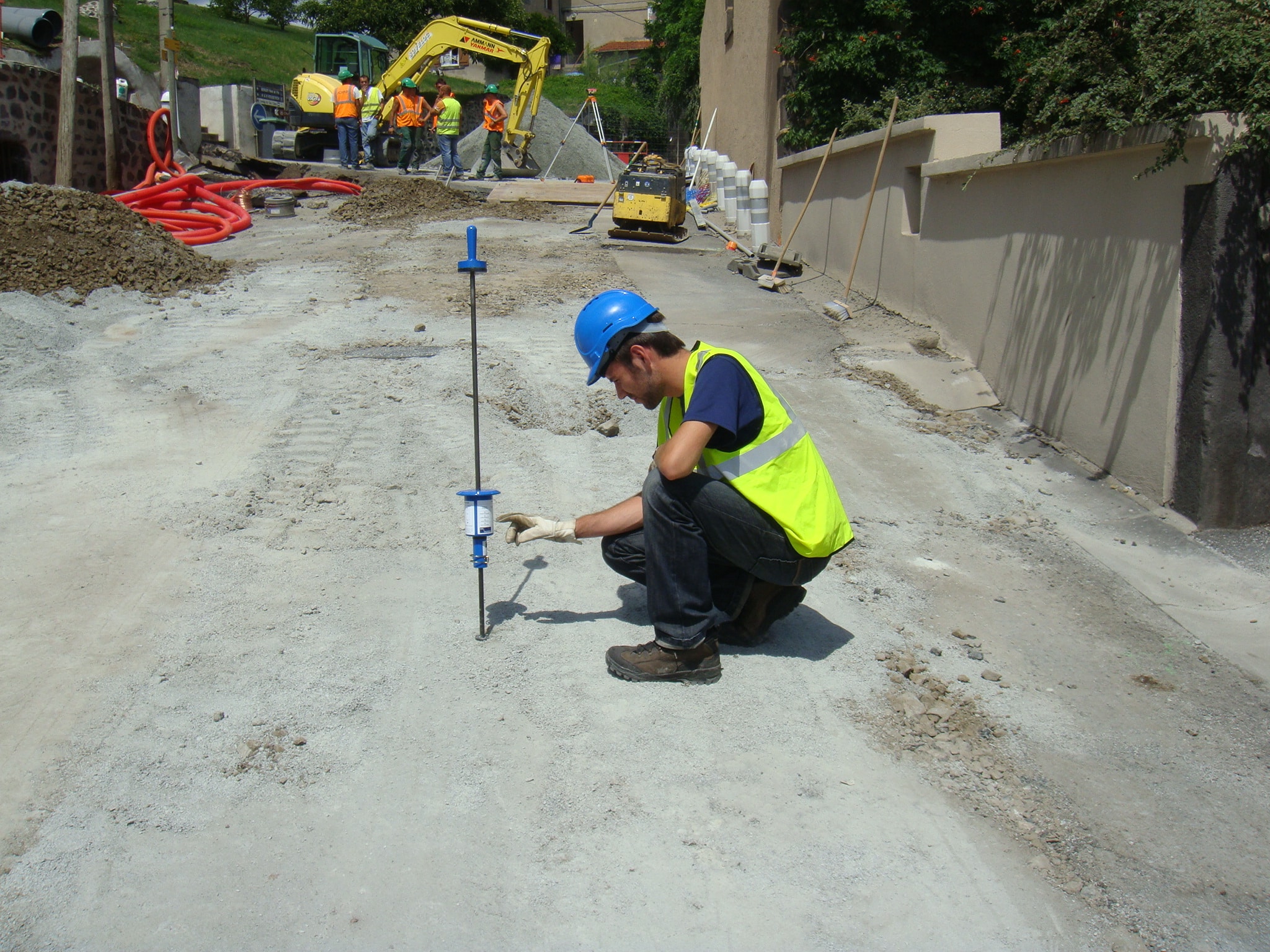

PANDITO® Ultra-light Dynamic Cone Penetrometer (DCP)

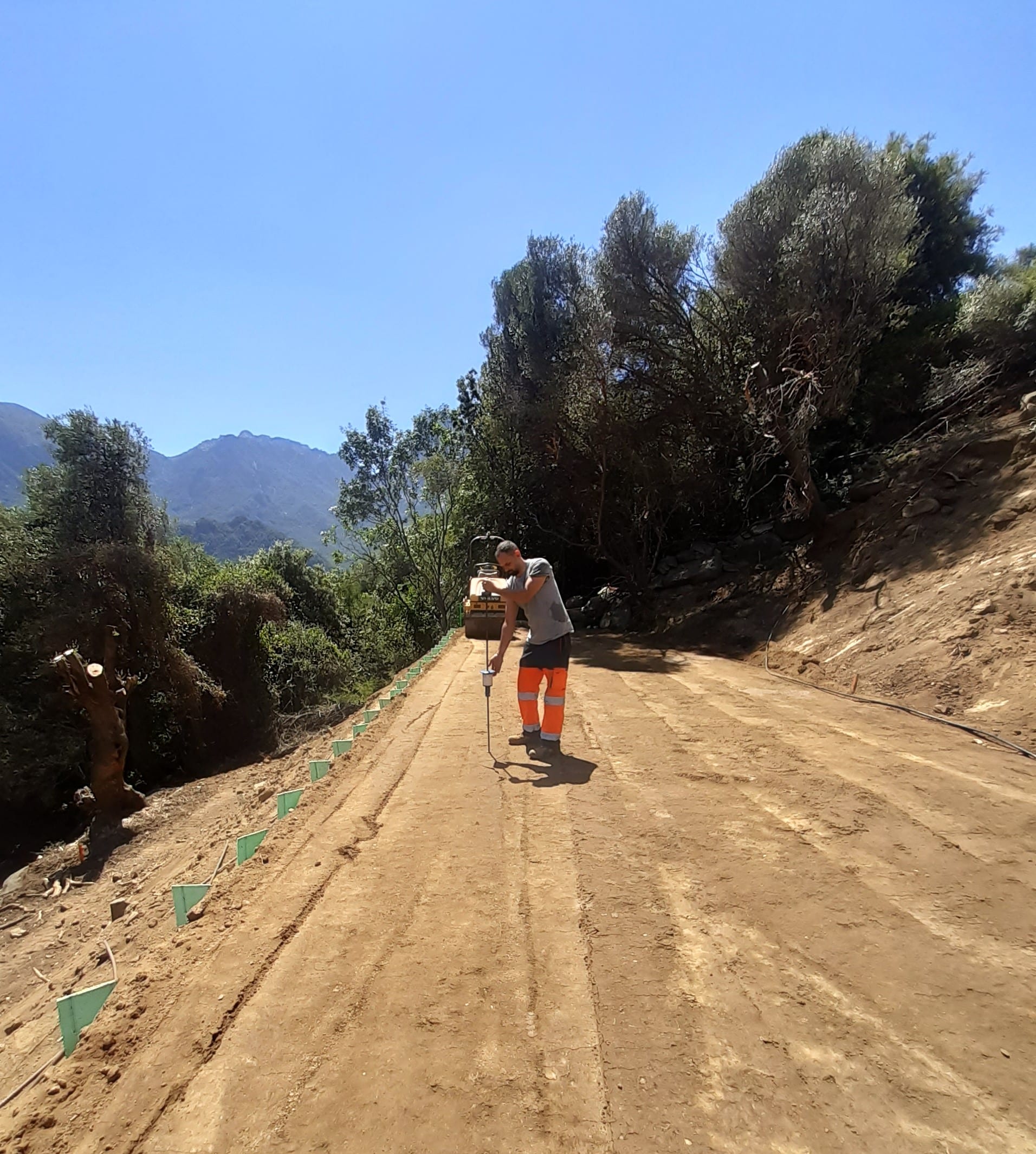

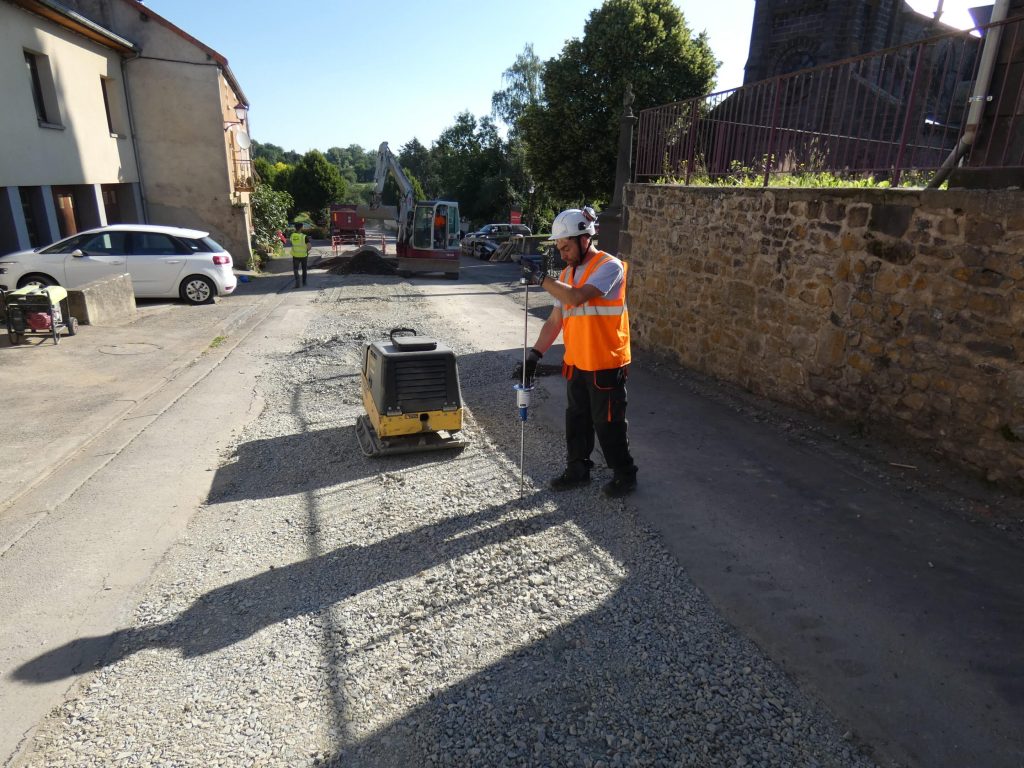

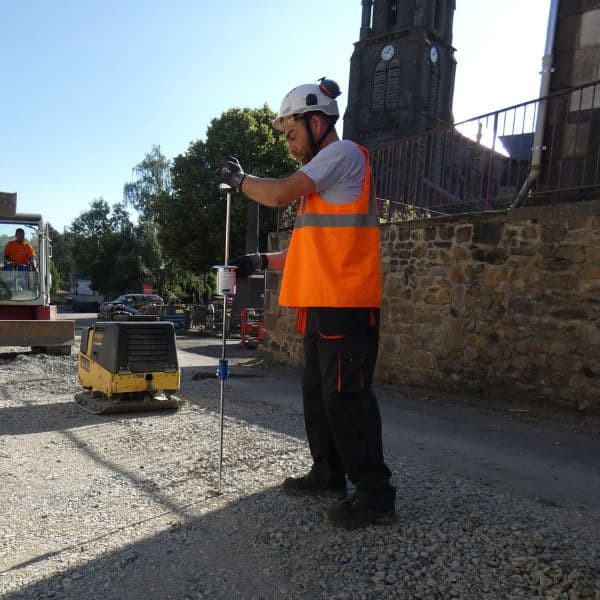

  • Layer by layer compaction control device
  • Used for pavement investigation for layers up to a max of 50 cm thickness
  • Simple to use – suitable for Level 1 supervision or self control
  • Immediate repeatable results so that on-site decisions can be made straight away

The PANDITO® Ultra-light Dynamic Cone Penetrometer (DCP) is a simple to use self control device to immediately test the compaction quality.

The PANDITO® DCP is suited for layers up to a maximum of 50 cm thickness, the typical maximum compaction depth able to be compacted with classical compactors. The results are presented as Cone Tip Resistance qd (MPa) or California Bearing Ratio (CBR) index. The PANDITO® is suitable for use on fine or coarse soils (clay, silt, sand, gravels etc) with a grain size up to 50 mm. The resistances to cone penetration (qd) are limited to 30 to 40 MPa (from 35 to 45 blows per 10 cm).

This self control test can be done by onsite field staff as the PANDITO® Dynamic Cone Penetrometer (DCP) is extremely simple to use and interpret. This mean that on-site decisions can be made immediately, rather than waiting for the final test using a normalised technique like the nuclear gauge / densitometer to identify and rectify compaction issues.

Data is captured (blows per 10cm) and presented using the SolSolution DCP app for results entry, calculation and printing / reports. The results are presented as Number of Blows, Cone Tip Resistance qd (MPa) or California Bearing Ratio (CBR) index.

To interpret the results, the number of blows required to drive the cone in by 10 cm is compared to a reference value that takes into account the type of soil (soil classification), its water content and the required compaction quality (% Optimum Proctor Normal (%OPN) or % Optimum Proctor Modified (%OPM)).

Applications

Some application examples for the PANDITO® from Sol Solution include establishing:

  • whether to keep dirt roads and tracks open (in the rainy season, when its wet or with other difficult conditions), to prevent excessive road damage and vehicles getting stuck or bogged

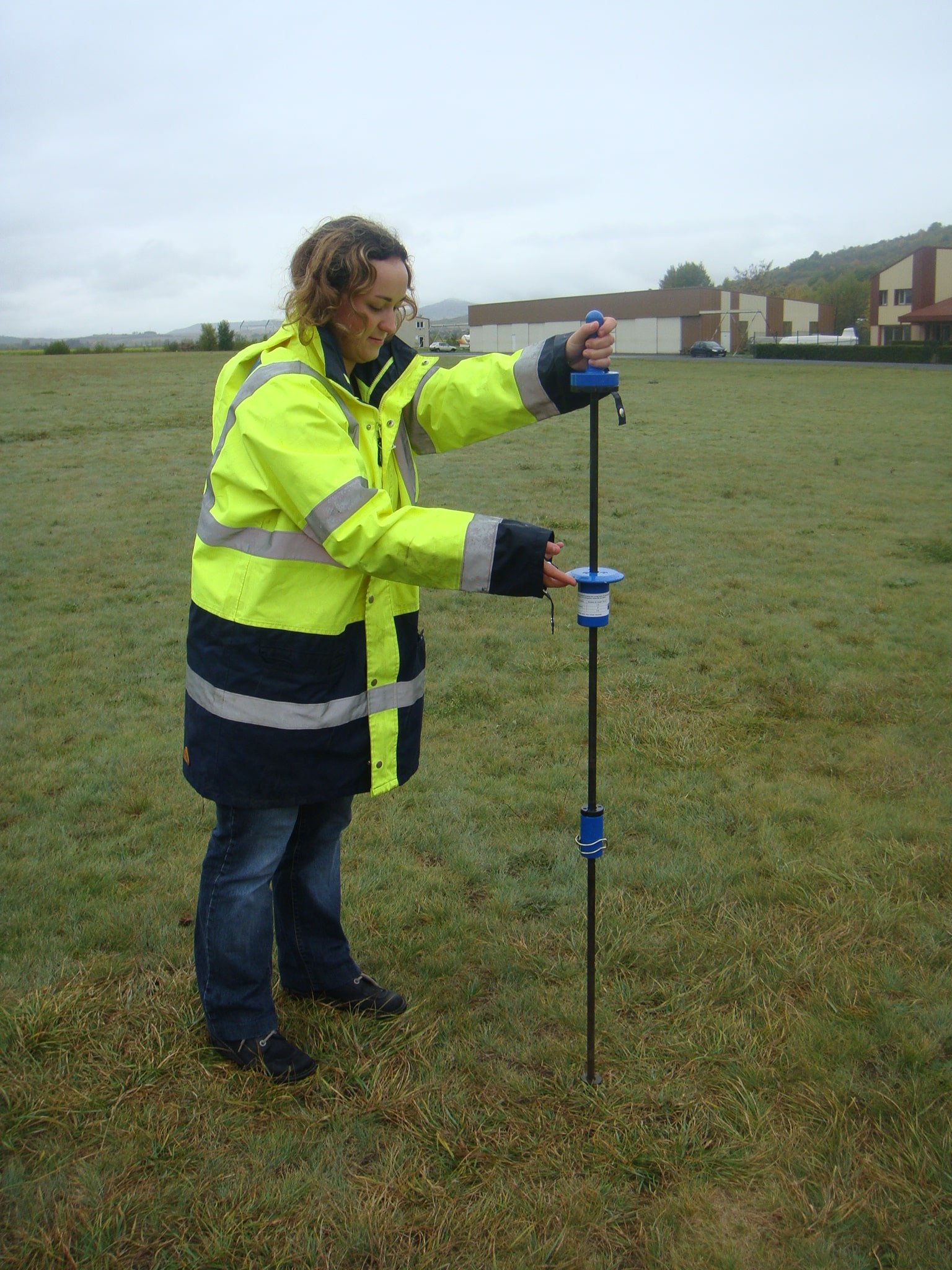

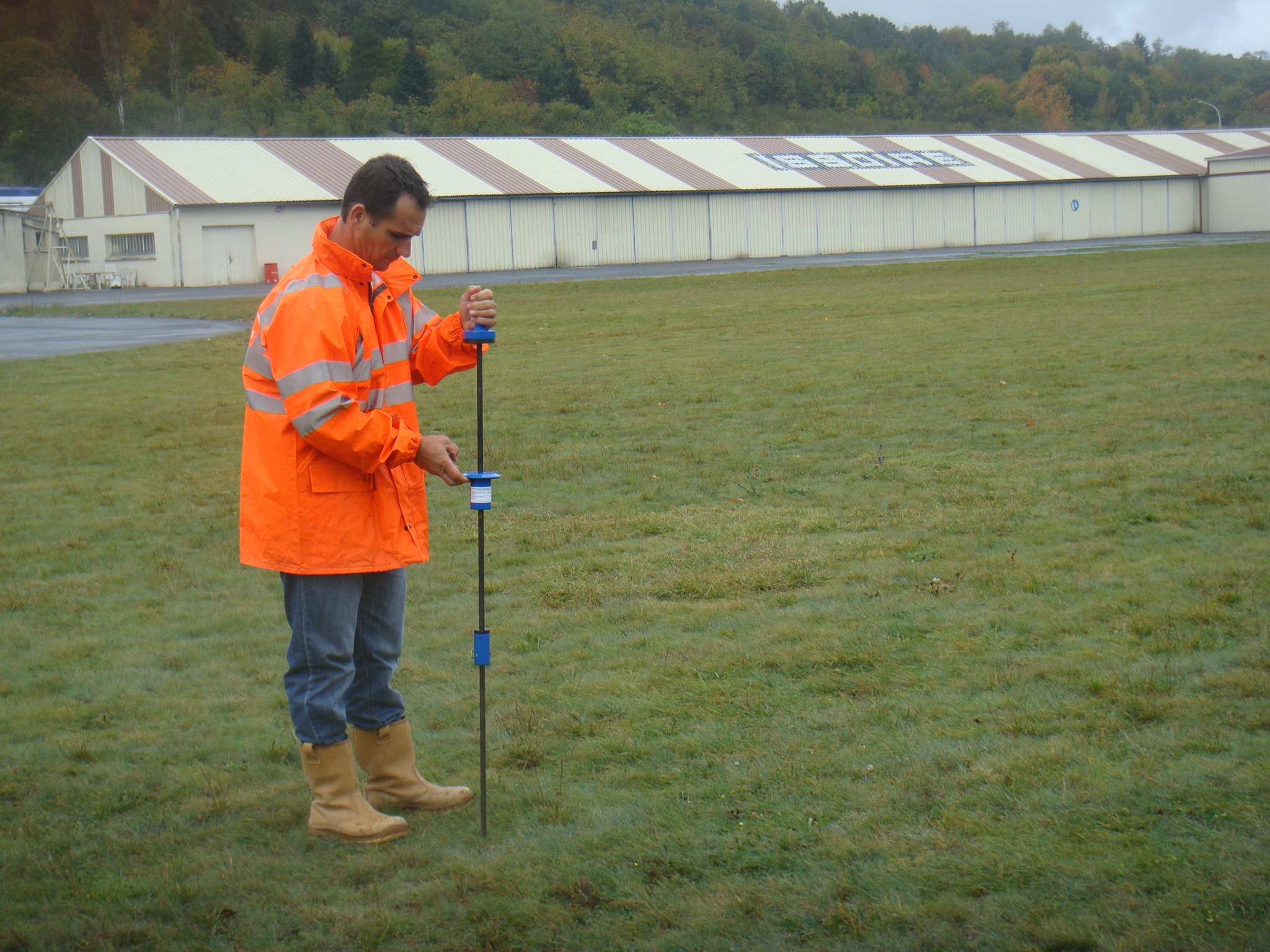

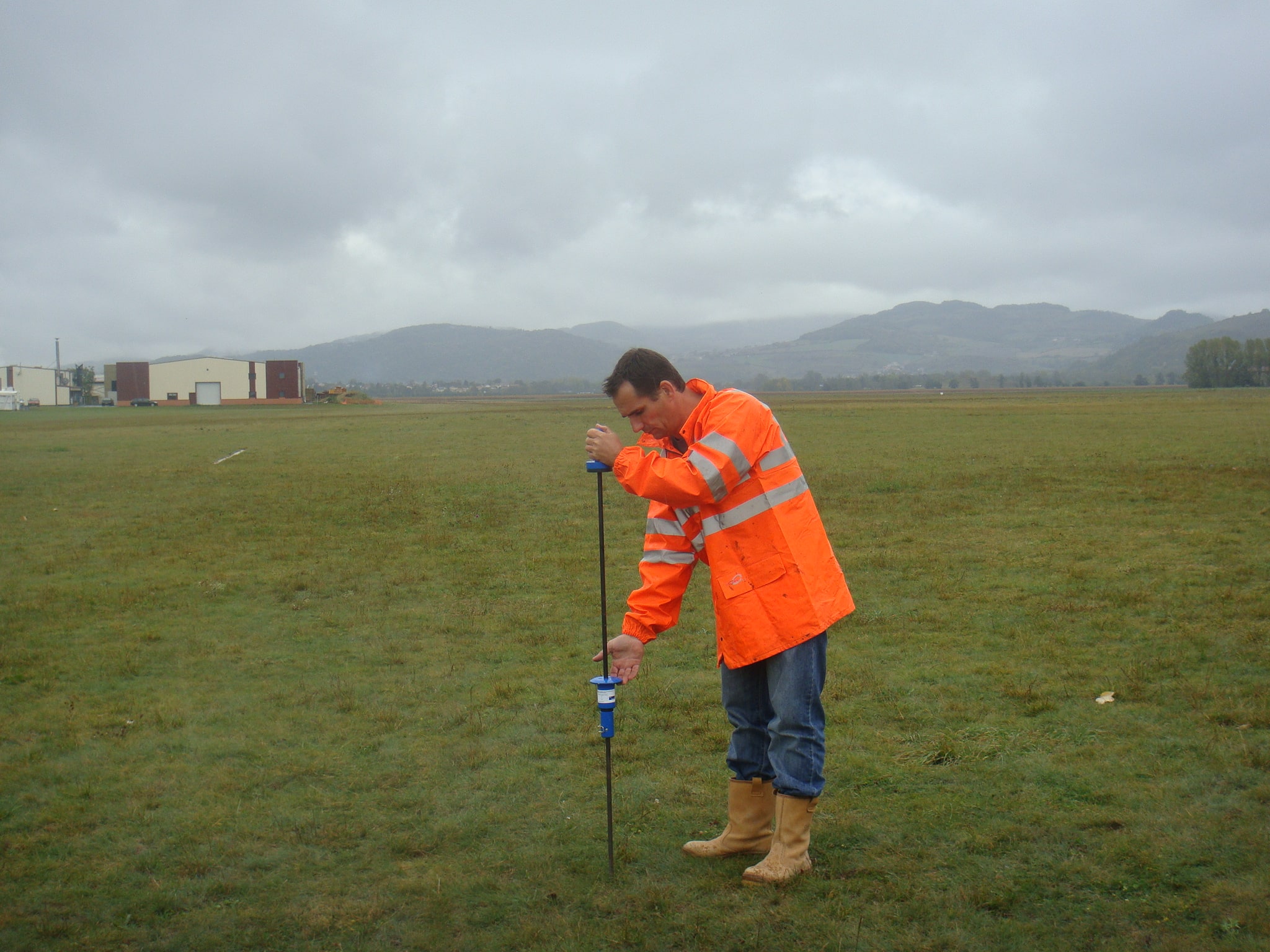

  • whether to keep un-surfaced runways and taxiways open or not

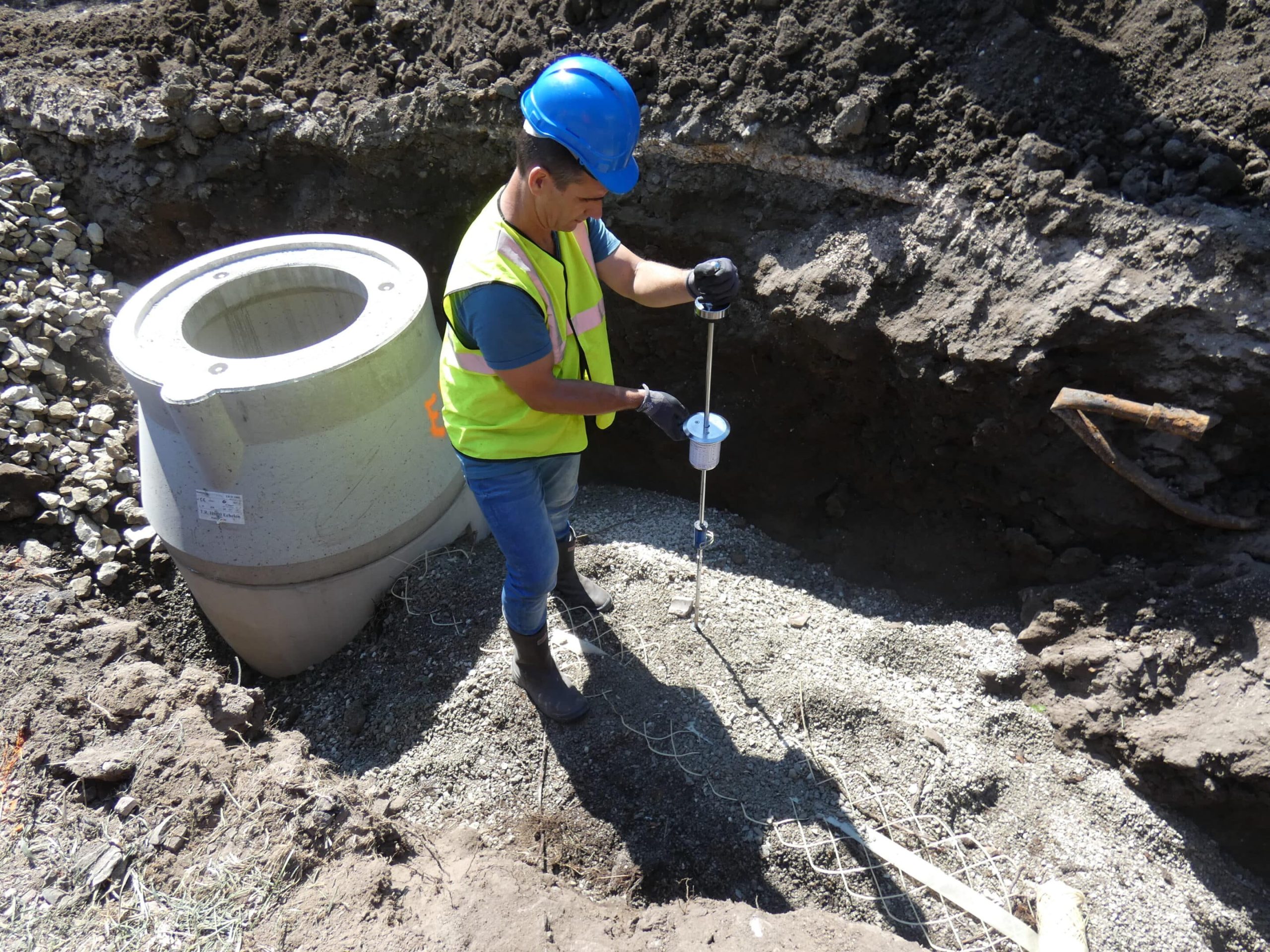

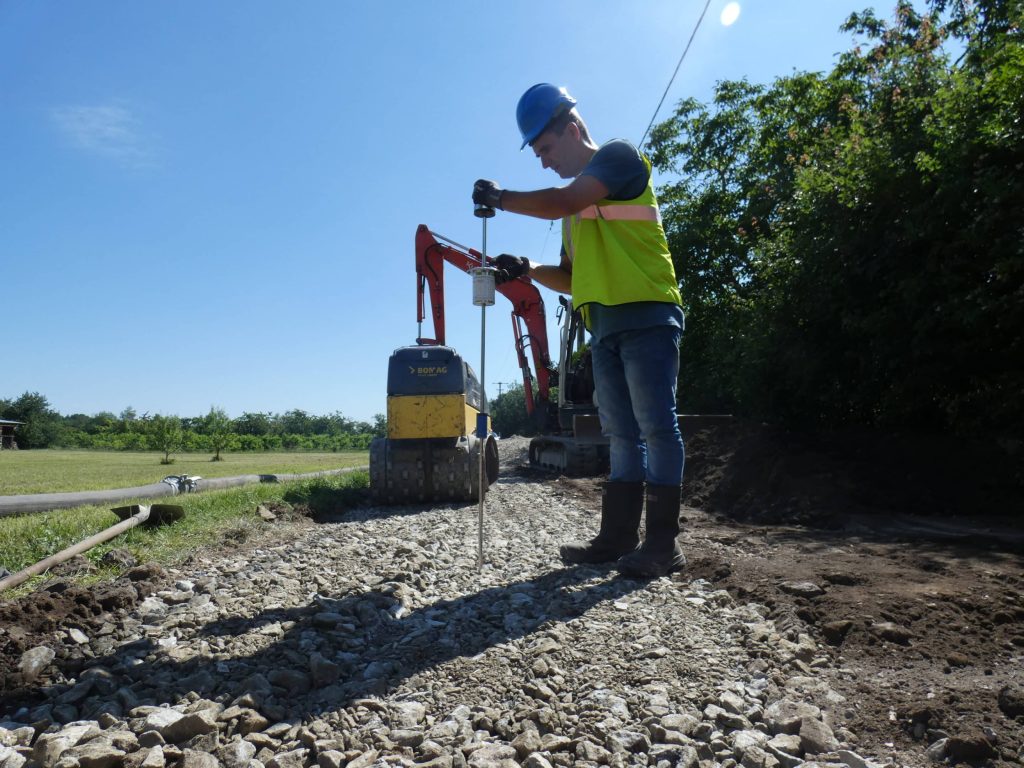

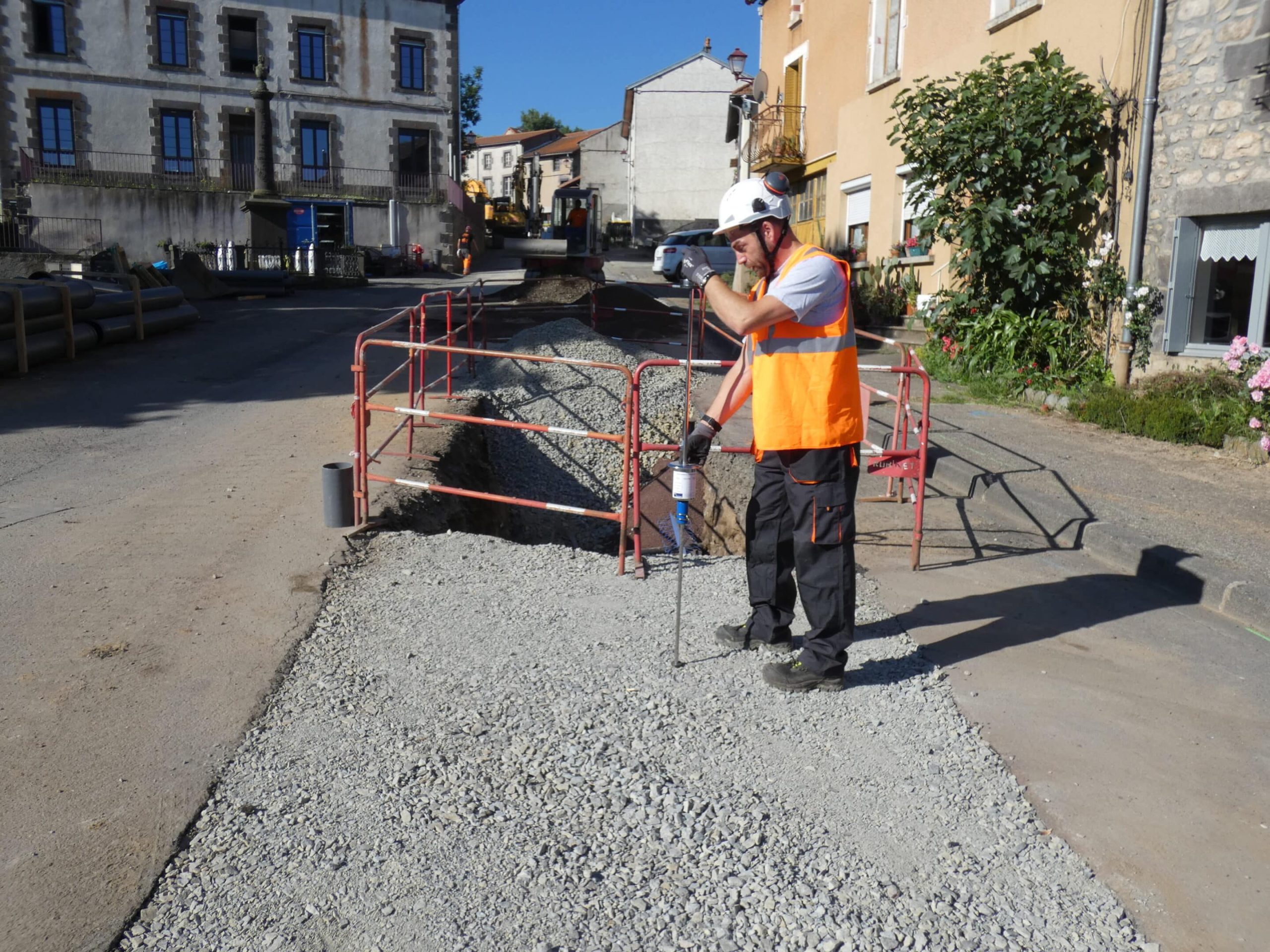

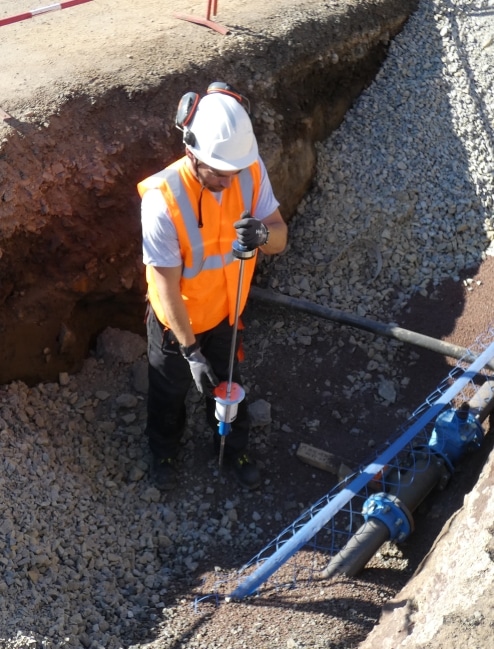

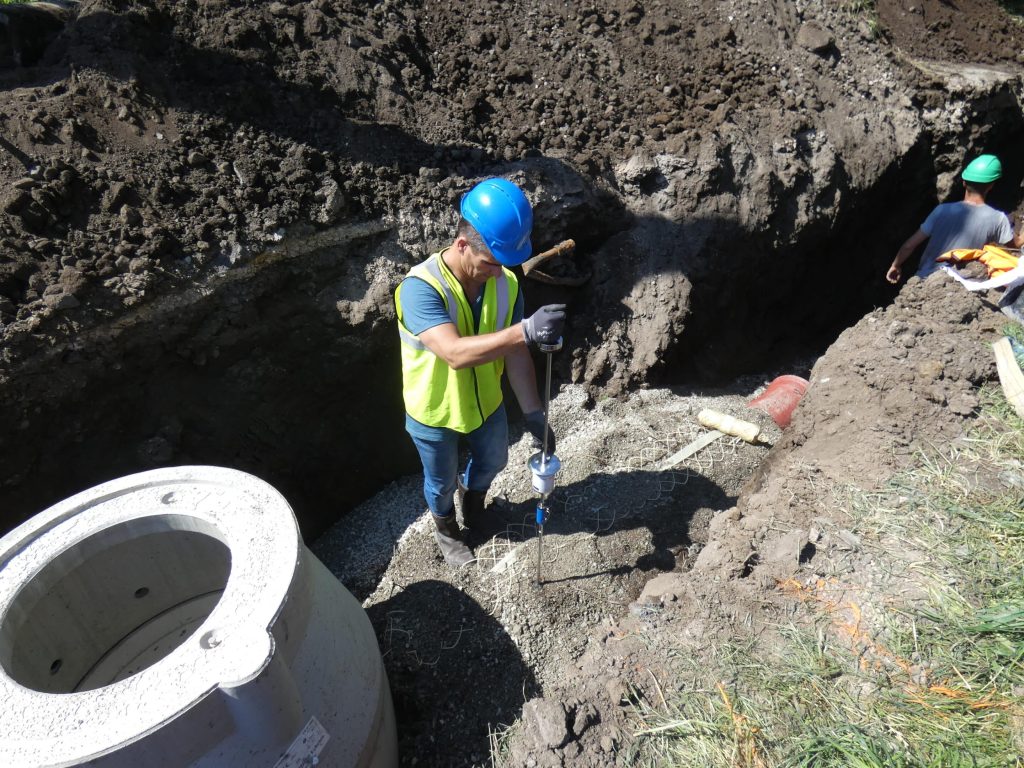

  • whether a trench is backfilled and correctly compacted

If you are interested in a fully instrumented Dynamic Cone Penetrometer (DCP), the PANDA® Instrumented Variable Energy DCP may suit your needs.

If you are interested in a partially instrumented Dynamic Cone Penetrometer (DCP), the eKodiak® Multi-Mass Automated DCP may suit your needs.

Advantages

The advantages of the PANDITO® Ultra-light Dynamic Cone Penetrometer (DCP) include:

  • Faster
    • Provides immediate results so that on-site decisions can be made straight away.
    • 5 minutes per test typical with results viewable on site
  • Accurate and Repeatable
  • Non destructive (almost)
  • Reduced errors
    • No manual recording or data transposition from paper required
    • Results are produced by the SolSolution DCP app (overcoming transposition or calculation errors)
    • Improved data flow and integrity
  • GPS located and time stamped – know where and when every test is done
  • Visually presented results
  • Graphical representation of the data (penetrogram) on the mobile phone, potting penetration depth per blow or blows per 10cm
  • Improved safety
    • Safe to operate (overcomes the safety issues of hand / finger crushing associated with the conventional Dynamic Cone Penetrometer (DCP)
  • Cost effective

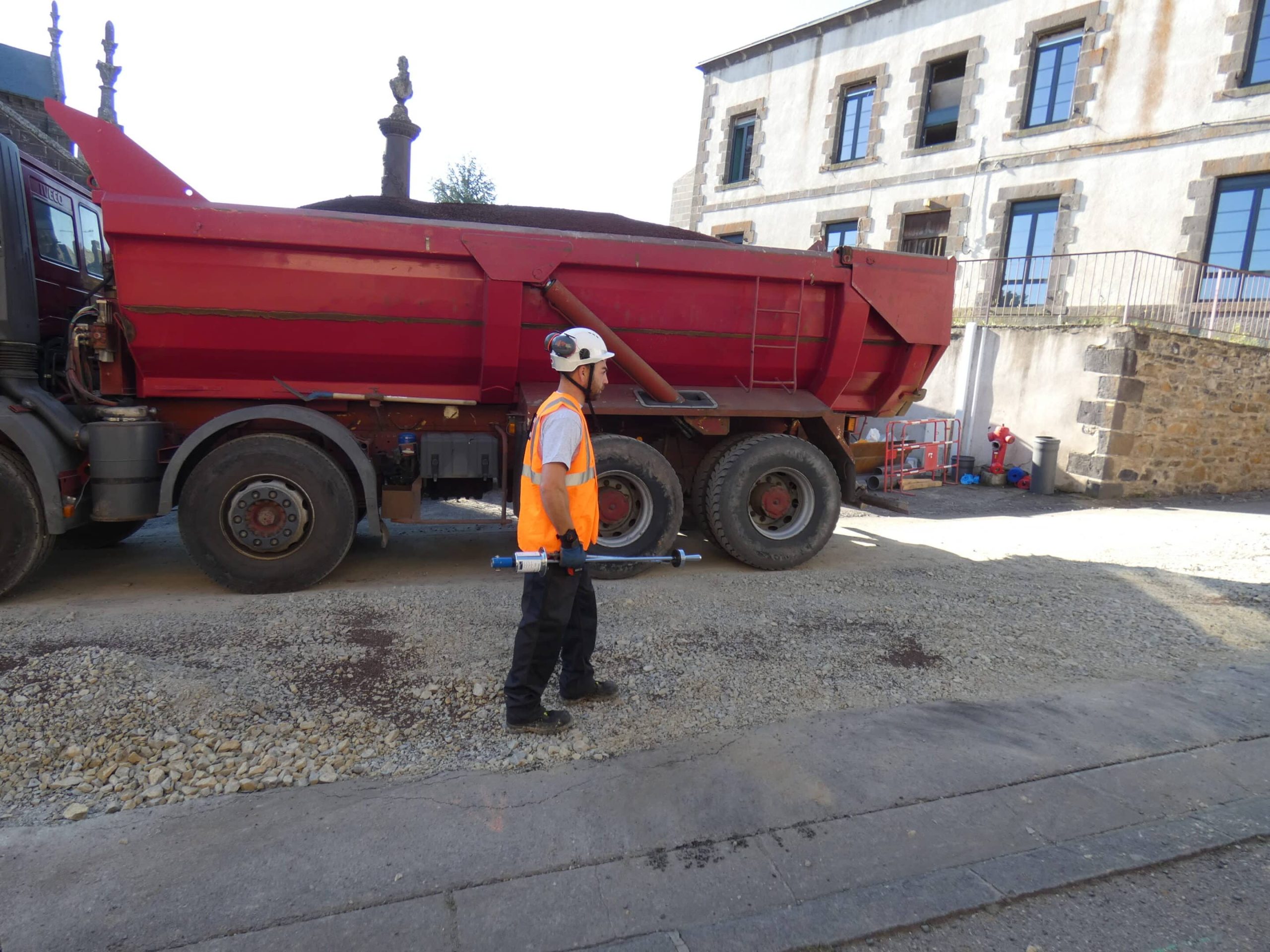

    • One person operation, rather than 2 for the traditional DCP

Ultra-light Dynamic Cone Penetrometer (DCP) Service and Spare Parts

Insitutek are proud to represent Sol Solution PANDITO® Ultra-light Dynamic Cone Penetrometers (DCP’s) in Australia, New Zealand and the Pacific Islands and provide a very high level of client support.

We offer a complete spectrum of services including after-sale technical support, servicing and repairs. Our service centre is also well stocked with spare parts and consumables.



To find out more, Contact Us.

How it Works

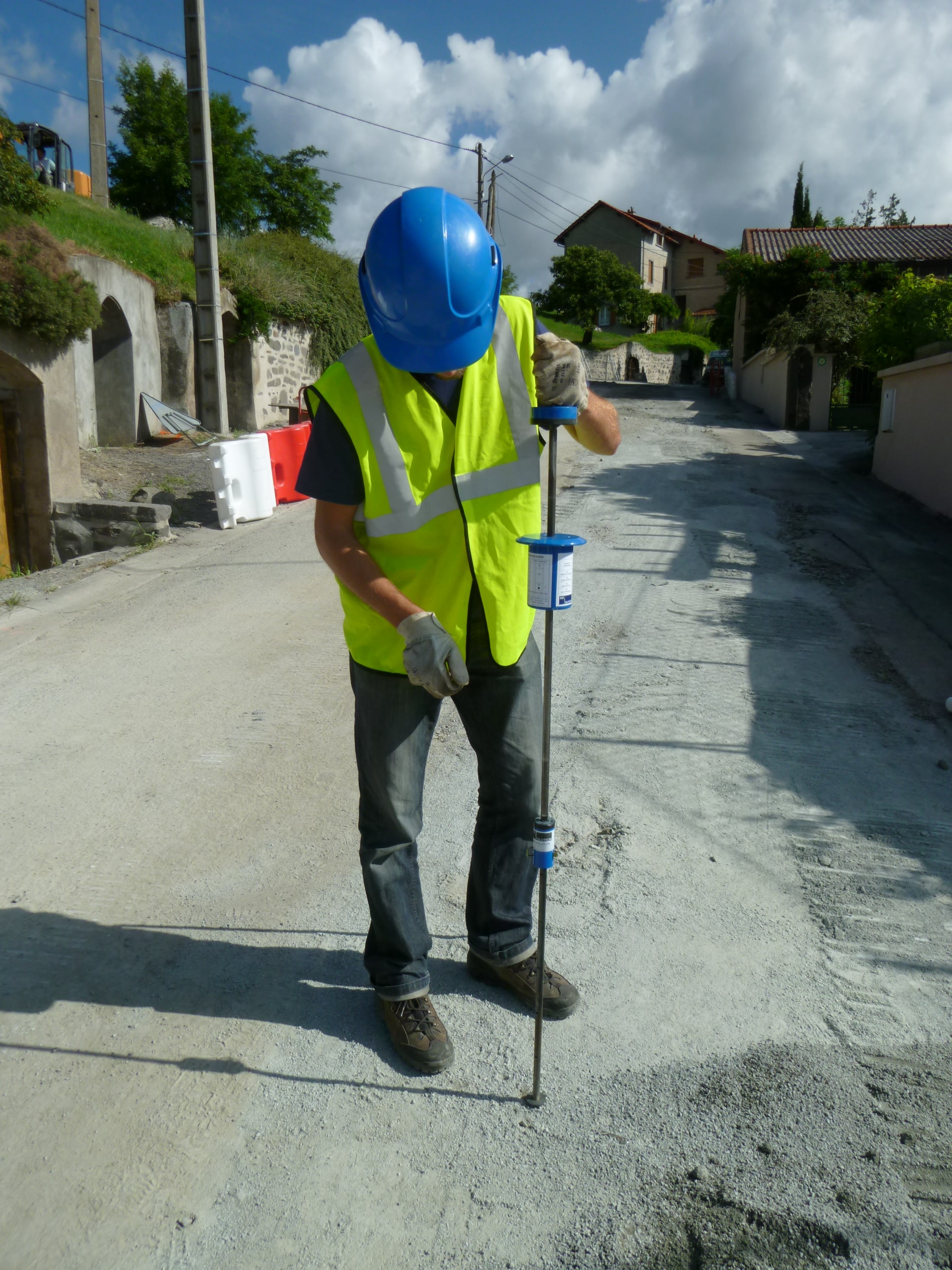

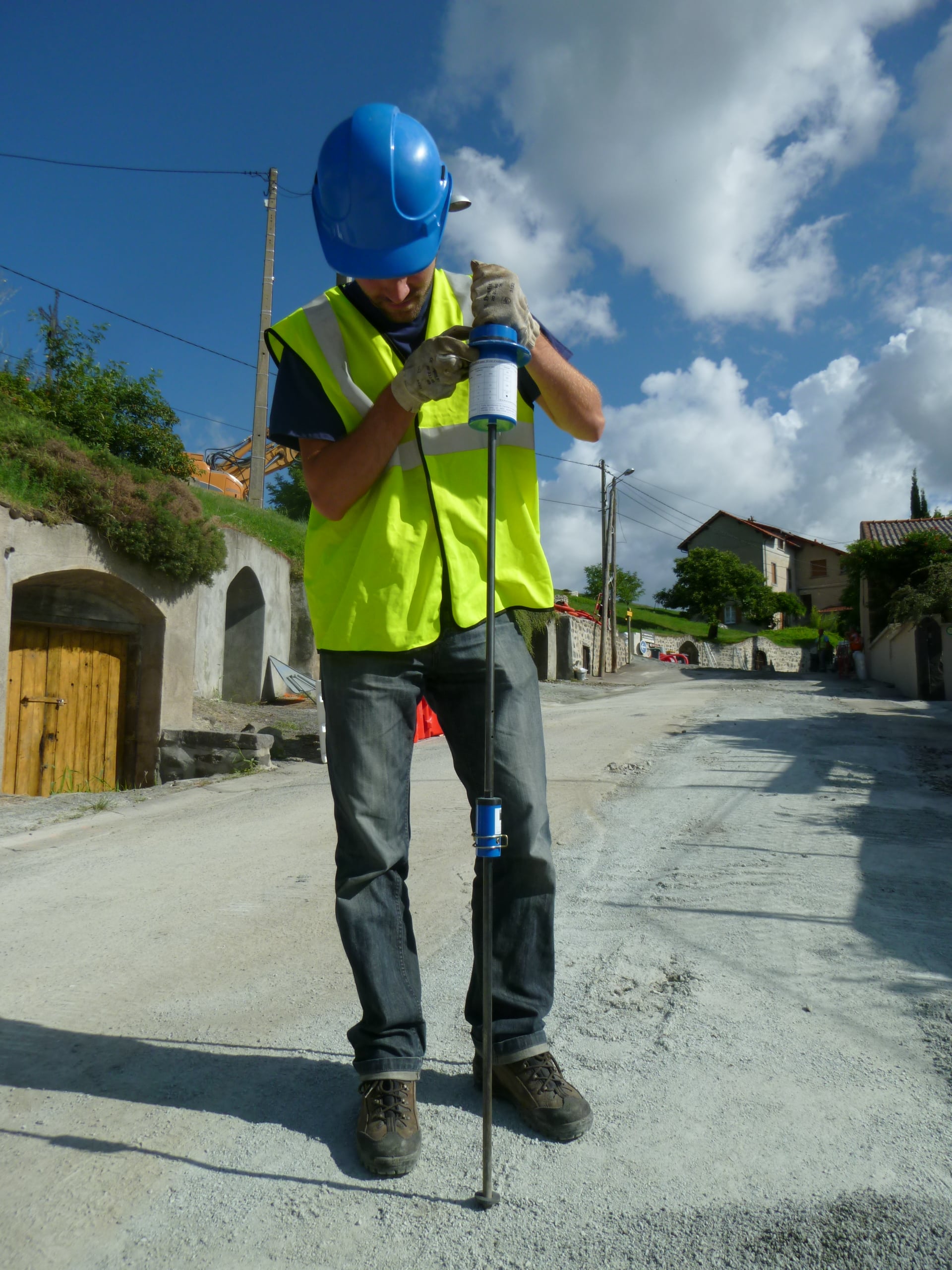

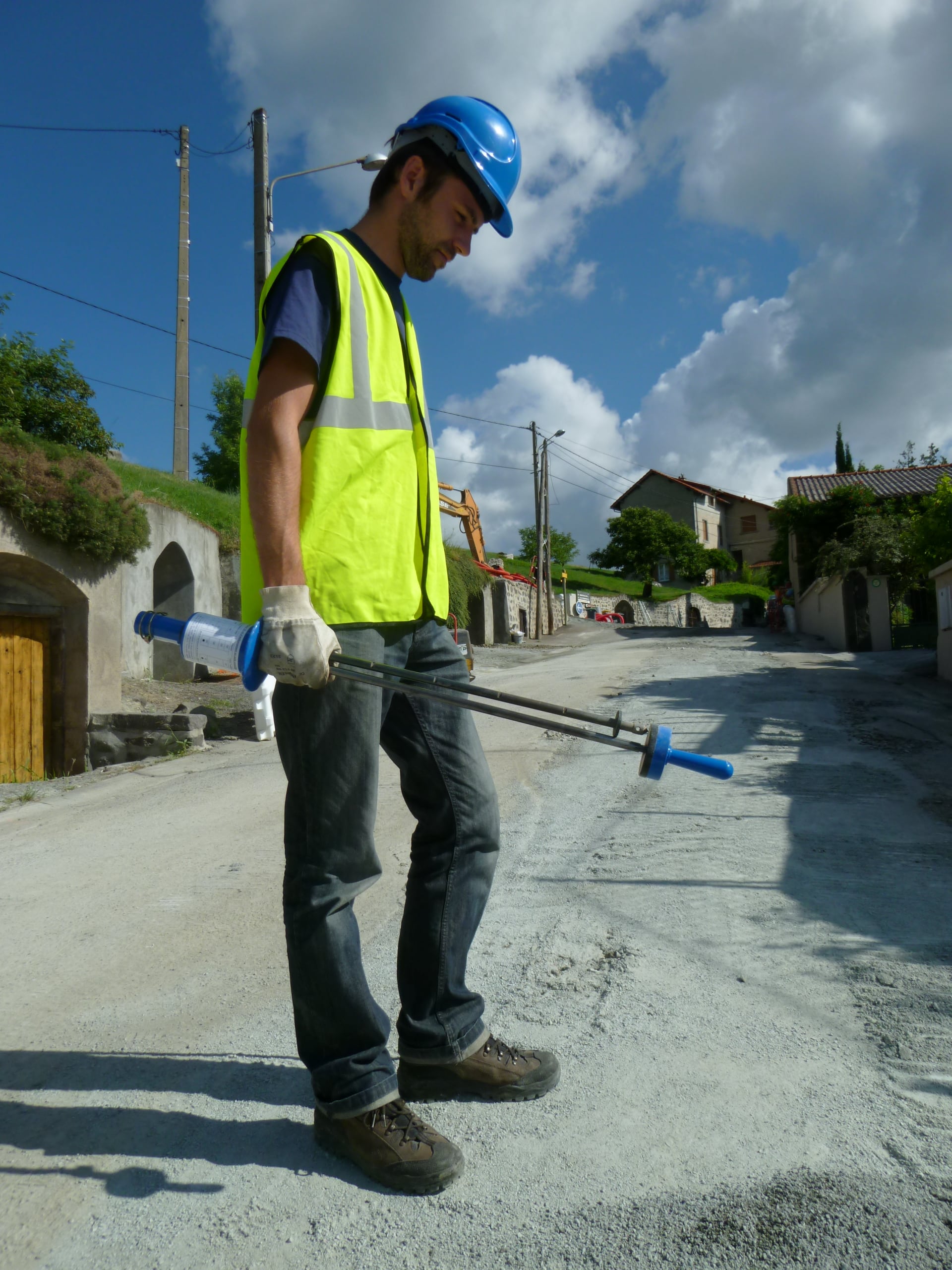

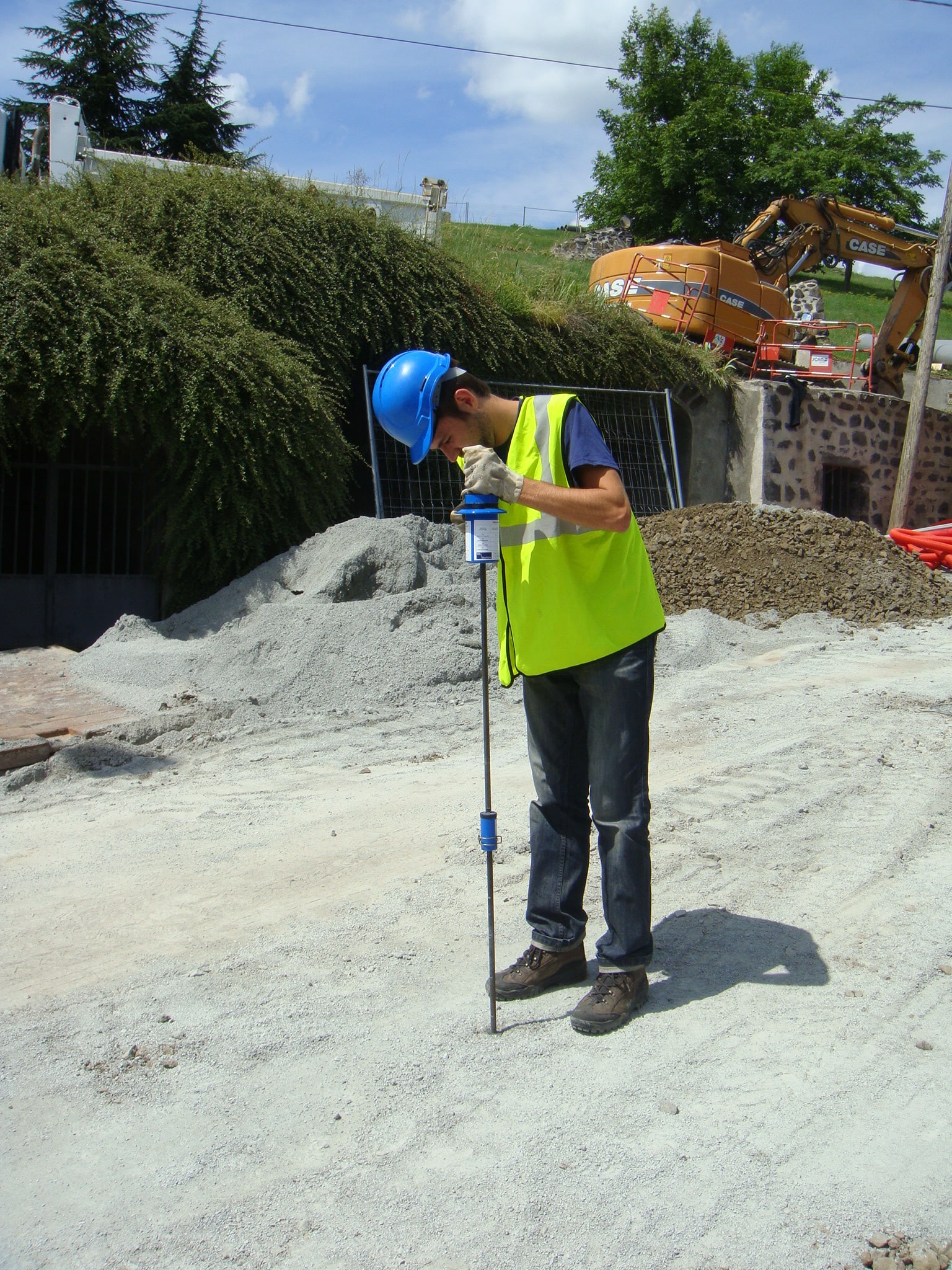

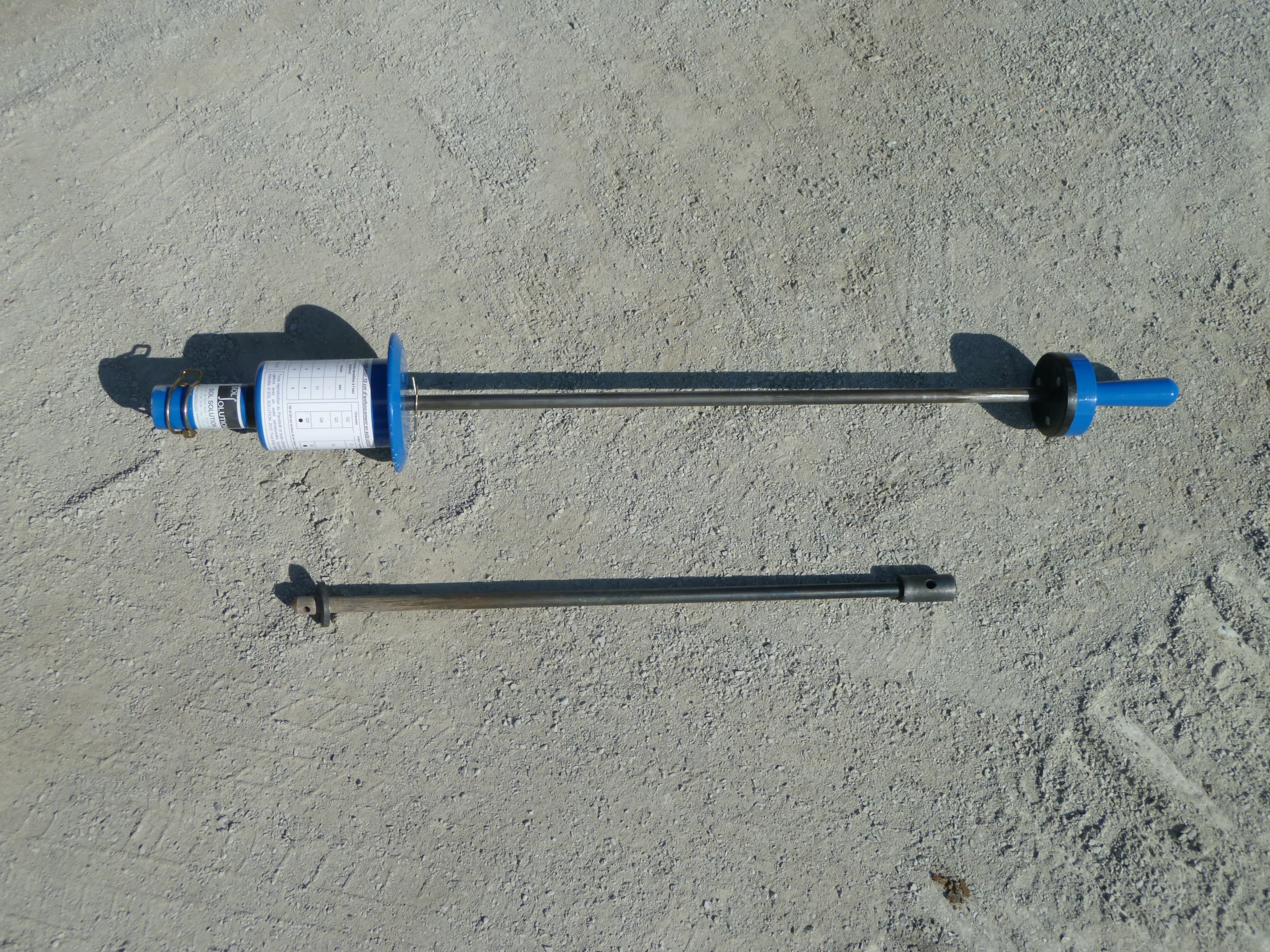

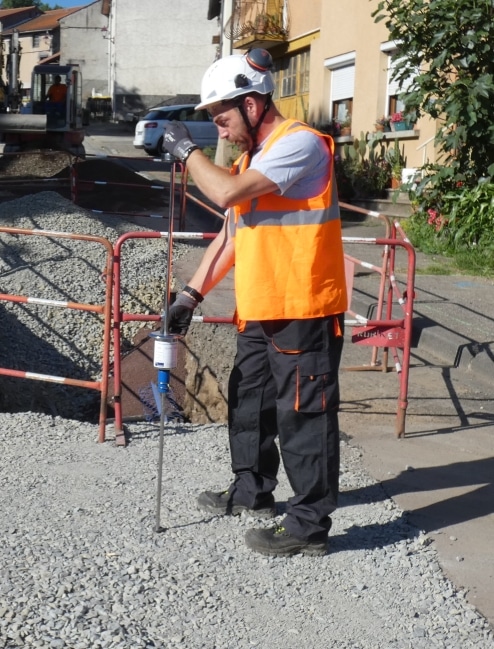

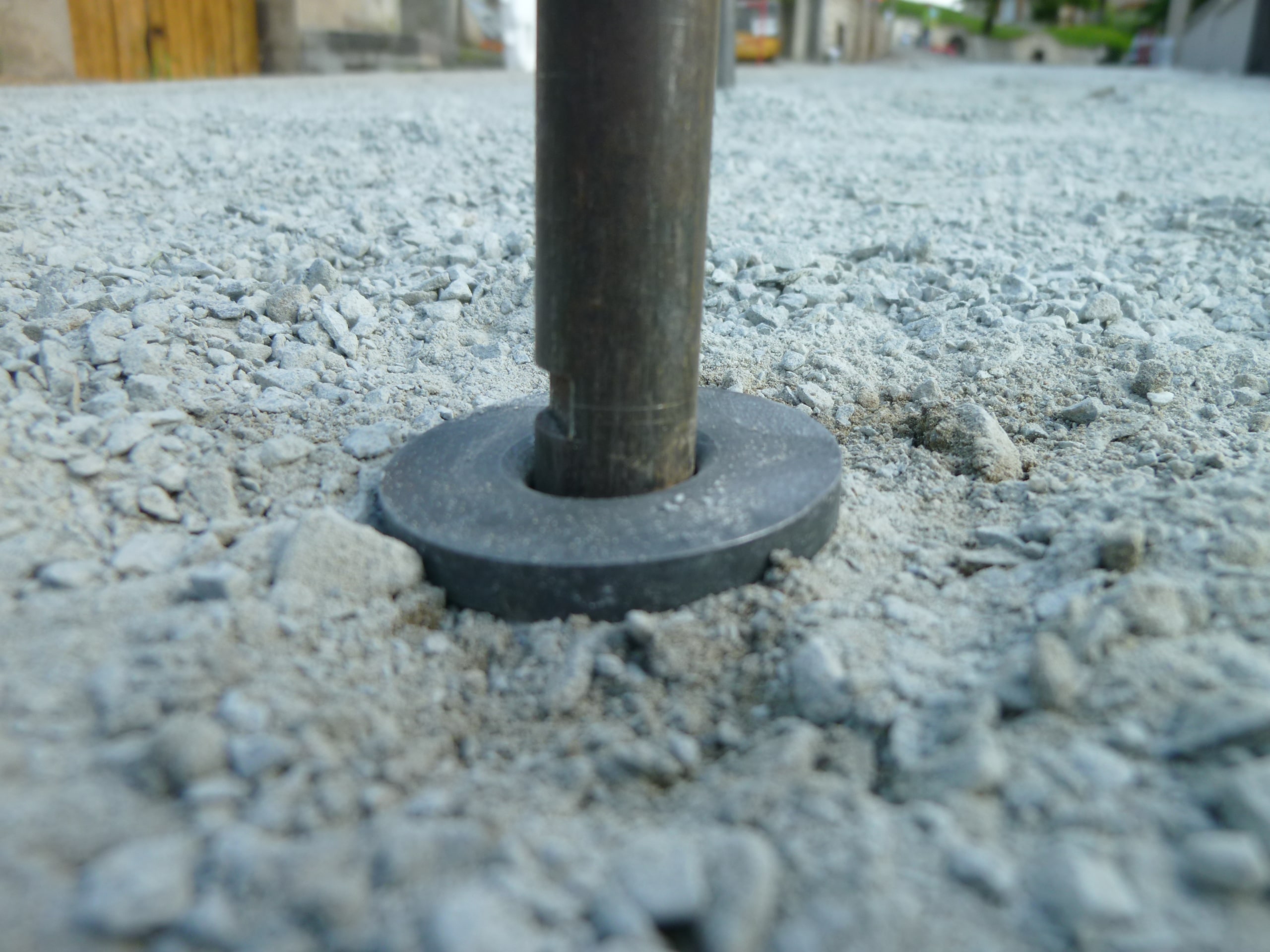

The operator who has just compacted a layer of material immediately tests the compaction quality using the PANDITO® Ultra-light Dynamic Cone Penetrometer. This self control test can be done by onsite field staff as the PANDITO® Dynamic Cone Penetrometer (DCP) is extremely simple to use and interpret. The PANDITO® Ultra-light Dynamic Cone Penetrometer is made up of a 5kg hammer system and a rod of 50 cm, graduated each 10 cm with a fixed cone of 2 cm². No additional tools are required for rod extraction.

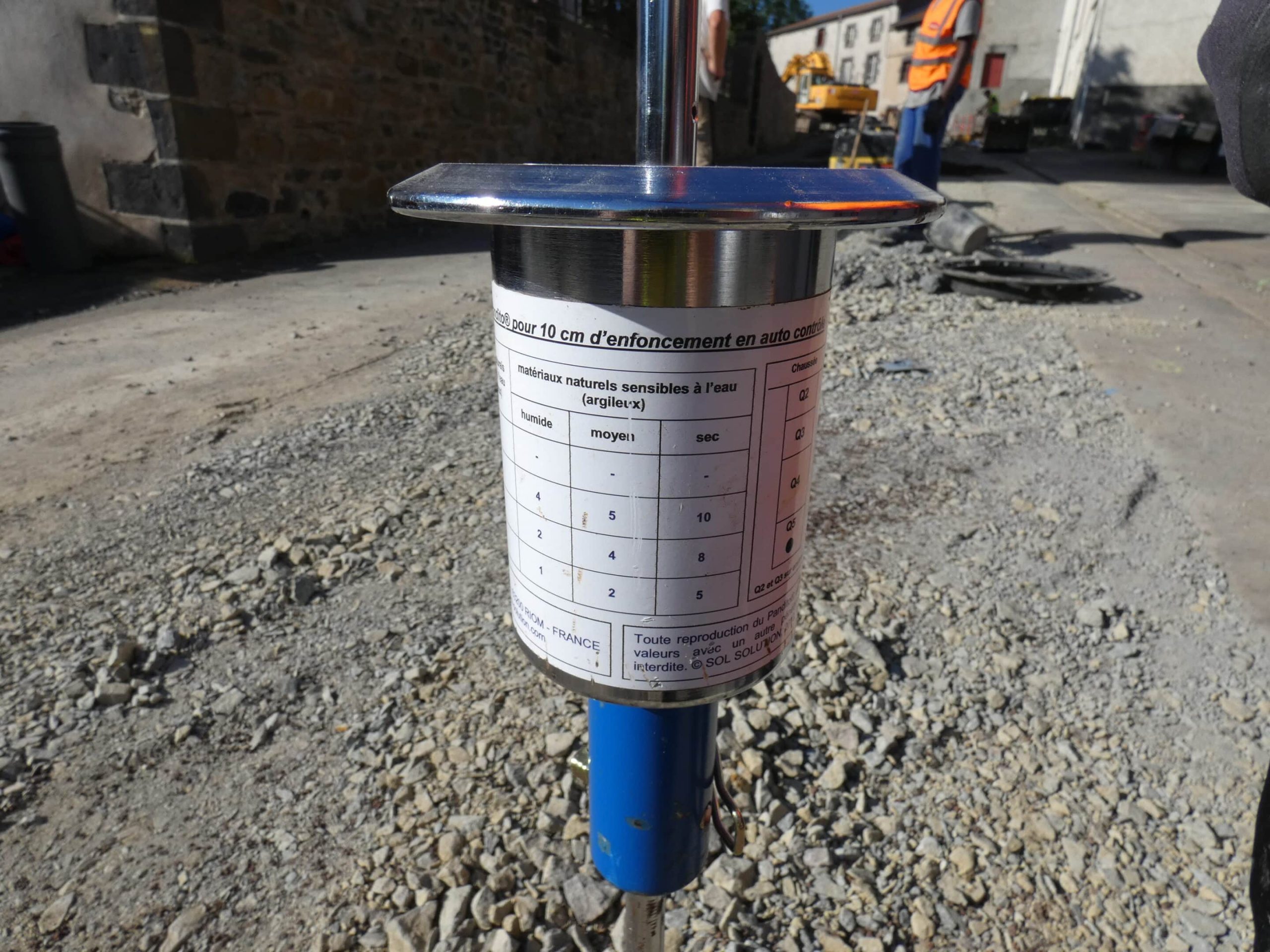

The test consists of hitting a cone into the ground with a constant energy. The number of blows measured to sink every 10 cm is compared to a reference value, which is dependent on the soil (soil classification), moisture (wet, medium, dry) and the compaction quality required (95% OPN/OPM, 100% OPN/OPM…). For ease of use, a simplified table with reference values (3 soils families gathered) is attached to the hammer of the PANDITO® for immediate interpretation on site.

Compaction objectives

Crushed rock
(0/20, 0/315,
0-50 mm)

Non clay soils

Clay soils

wet

medium

dry

90% OPN

3

2

1

2

5

90% OPM –
95% OPN

5

3

2

4

8

95% OPM –
100% OPN

8

6

4

6

11

100% OPM

11

7

6

7

13

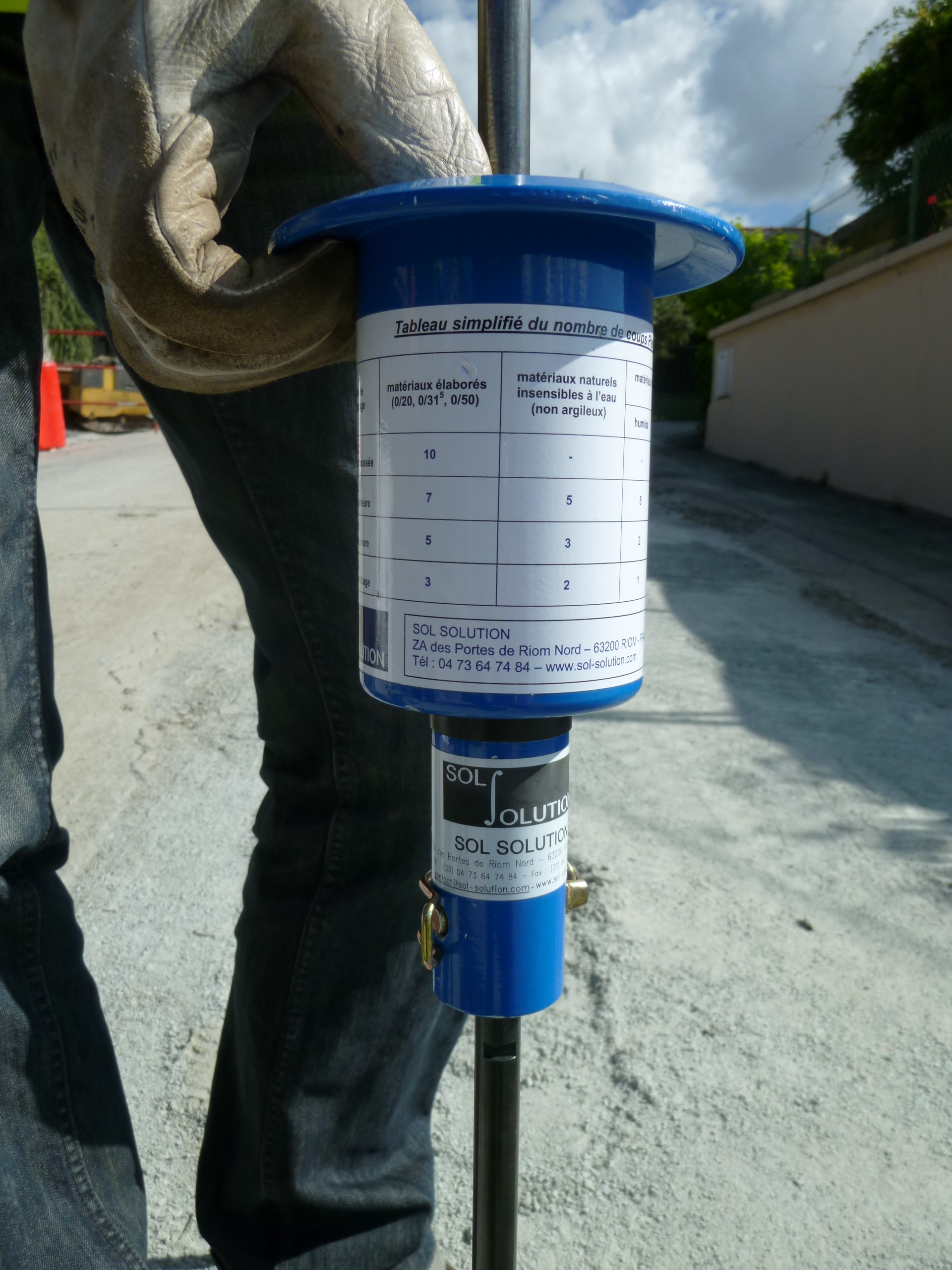

 Simplified table – Number of blows PANDITO® for 10 cm depth for compaction control

A full database (all soils from several soil classifications: USCS, AASHTO, PG3…) is also available as a table in order to refine the analysis. This more detailed analysis benefits from many years of research and development experience by SOL SOLUTION with dynamic cone penetrometers in compaction control.

Videos

PANDITO Ultra-light Dynamic Cone Penetrometer (DCP)

Brochures

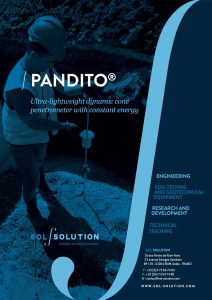

PANDITO Ultra-Light Dynamic Cone Penetrometer (DCP) Brochure
