- Detection of sand/clay layers
- Tracking of saltwater carrying layers
- Detection of contamination

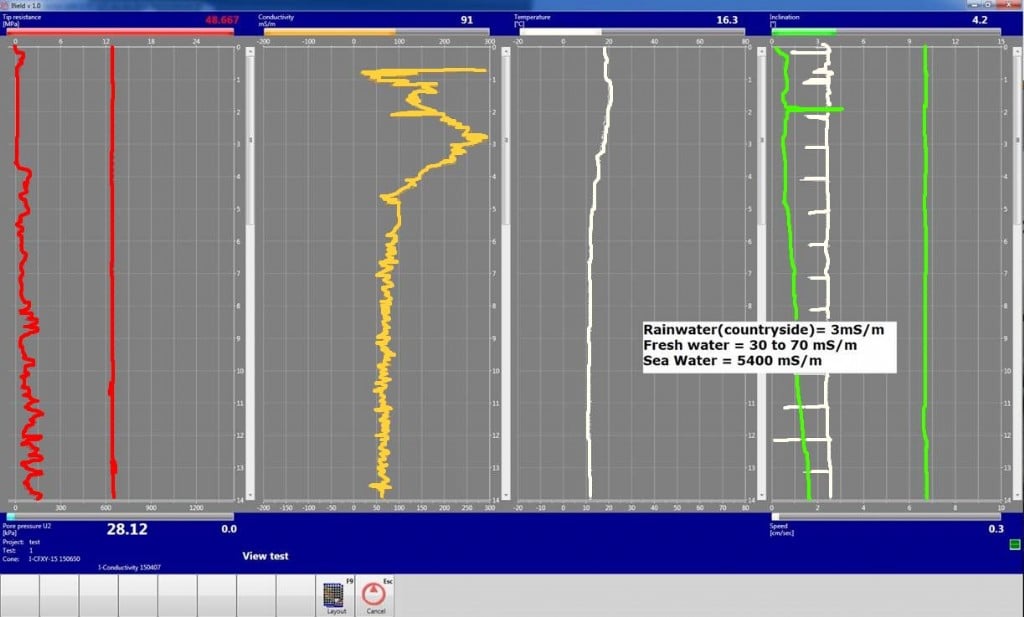

Icone Conductivity is used for measuring variations in the electrical conductivity of the soil. The output enables detection of sand/clay layers, tracking of saltwater-carrying layers and detection of contamination.

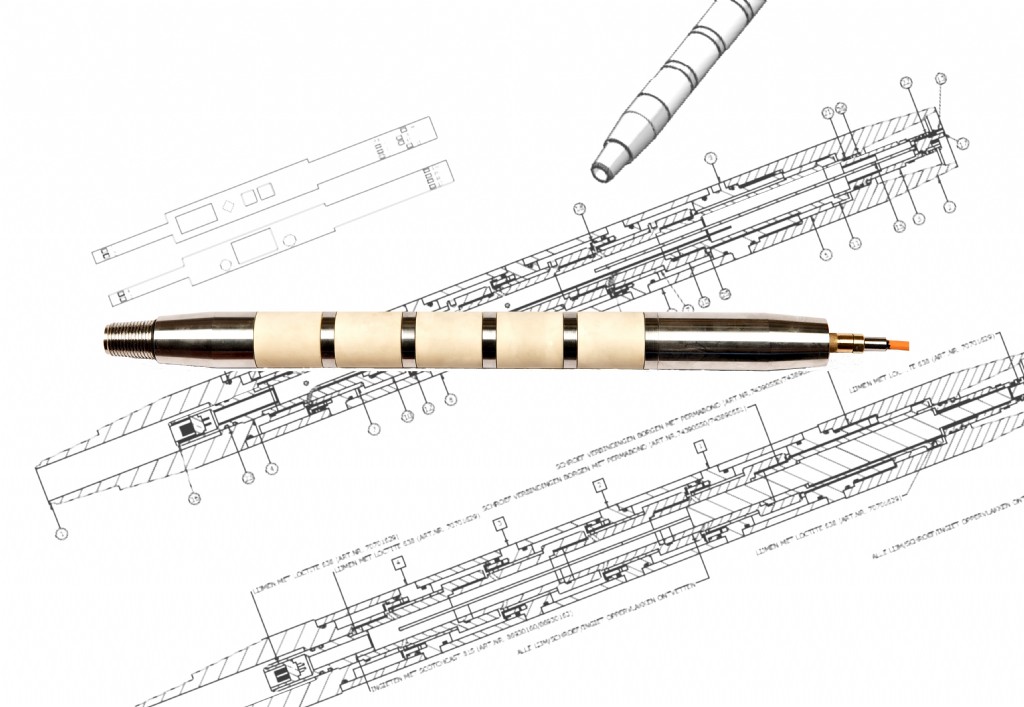

A.P. van den Bergโs Conductivity Module has four electrode rings that are separated by ceramic insulators to ensure accurate determination of the soil conductivity. The module has a built-in temperature sensor to enhance the analysis and evaluation of the measured values for conductivity.
|
Conductivity
|
Temperature
|
|
measuring range 50 – 1500 mS/m |
measuring range 0ยฐ – 50ยฐC
|
|
accuracy: 5% or 1 mS/m
|
accuracy: 1.5%
|

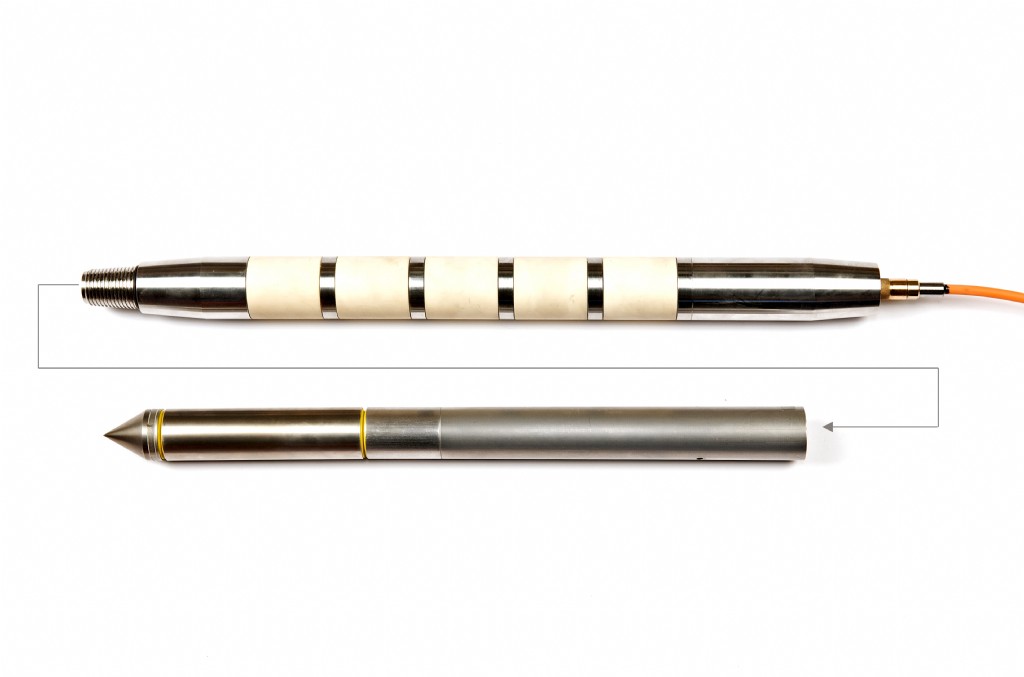

The modular click-on concept facilitates the application of the Conductivity Module as and when required. It can be applied with or without an Icone connected. In case CPT data is not required, the Conductivity Module is used with a dummy tip.
Cone Penetration Test (CPT) Sales, Calibration, Service and Spare Parts
Insitutek are proud to representย A.P. van den Bergย Cone Penetration Test (CPT) equipment in Australia, New Zealand and the Pacific Islands. Our CPT product range coversย CPT rigs and pushers, data acquisition systems, click on plug in and play modules for down hole Electrical Shear Vane Testing (EVST), Seismic CPT (SCPT), Conductivity and Magneto and MOSTAP soil sampling.ย We provide a high level of client support, from technical pre-sale consultations and supply of equipment to commissioning, user training, after-sale technical support,ย servicing, repairs, and calibrations. Our service centre is also well stocked with spare parts and consumables.
To find out more,ย Contact Us.
