- 3-dimensional detection of the magnetic field
- Detection of sheet piling, ground anchors and Unexploded ordnance (UXO)

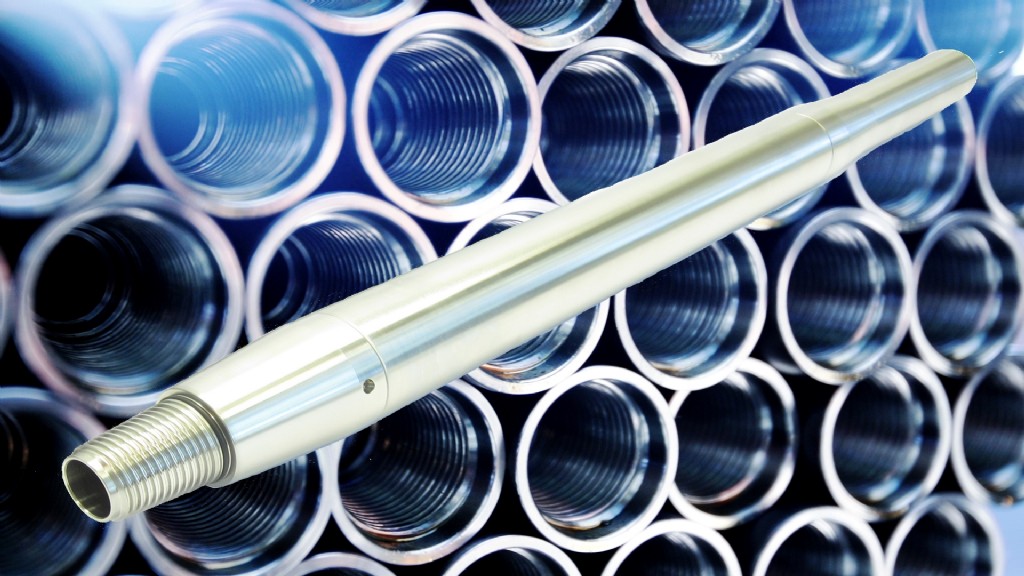

Icone Magneto Module detects objects in the soil containing magnetisable metal, e.g. unexploded ordnance (UXO), ground anchors, piping, the tip of sheet piles and foundation piles by interpreting anomalies of the earthโs magnetic field.
The Magneto Module is equipped with its own inclinometer in X- and Y-direction, to allow for accurate positioning.

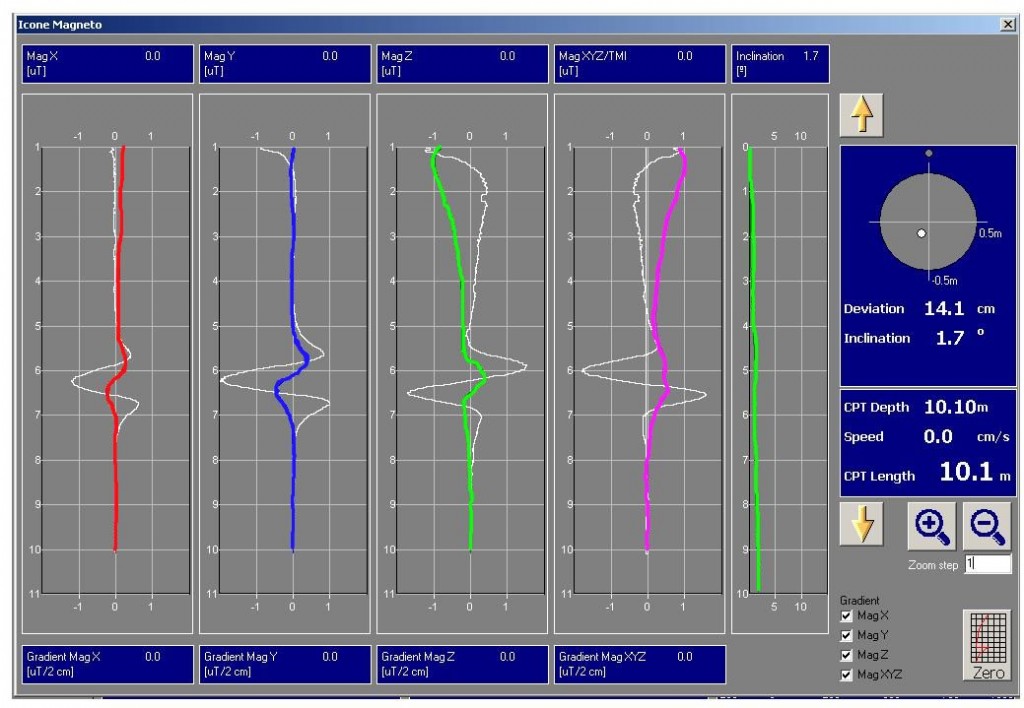

Anomalies can be detected at a distance up to 2 m depending on the size of the object. To accurately respond to changes in the measured value, in particular when detecting UXOโs, the gradients of the orthogonal measured anomalies are also determined. Alarm values can be set to stop pushing when one of these gradients is exceeded.
| Magnetometer | Inclinometer |
| measuring range -100/+100ฮผ | measuring range -25ยฐ / +25ยฐ |
| accurancy 0.02ฮผ | accuracy 1ยฐ (FRO) |
ย When required, Icones and CPT rods are available in non-magnetisable Nitronic metal.

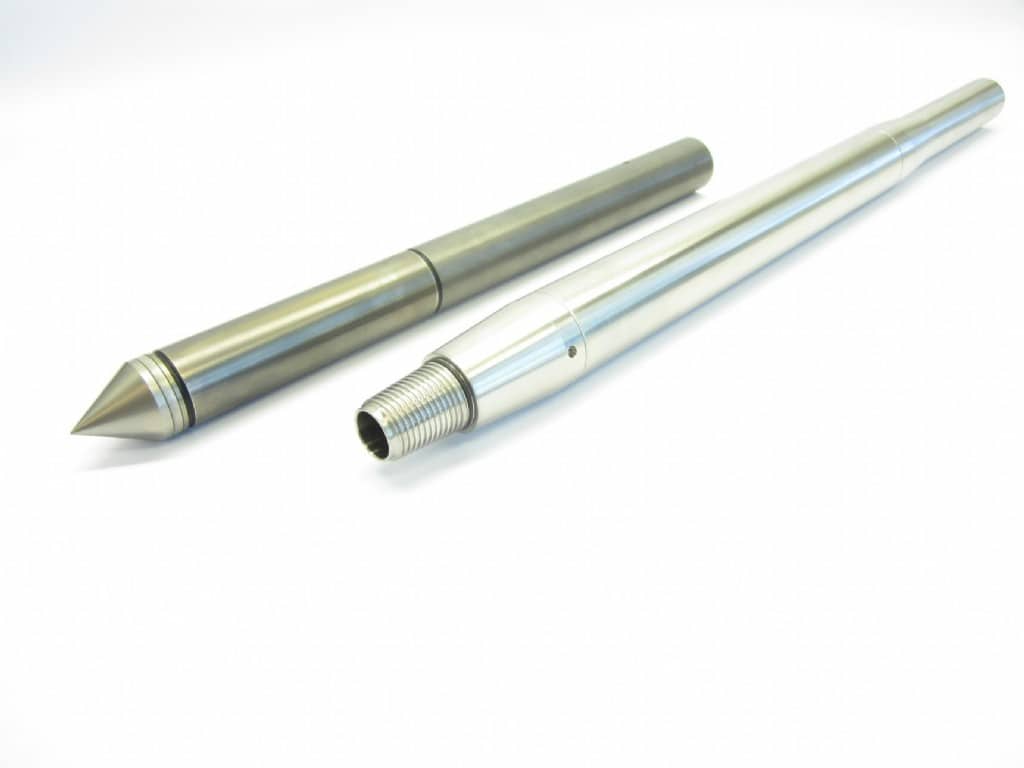

The standard CPT-parameters can also be measured if an Icone is mounted in front of the Magneto Module.
Cone Penetration Test (CPT) Sales, Calibration, Service and Spare Parts
Insitutek are proud to representย A.P. van den Bergย Cone Penetration Test (CPT) equipment in Australia, New Zealand and the Pacific Islands. Our CPT product range coversย CPT rigs and pushers, data acquisition systems, click on plug in and play modules for down hole Electrical Shear Vane Testing (EVST), Seismic CPT (SCPT), Conductivity and Magneto and MOSTAP soil sampling.ย We provide a high level of client support, from technical pre-sale consultations and supply of equipment to commissioning, user training, after-sale technical support,ย servicing, repairs, and calibrations. Our service centre is also well stocked with spare parts and consumables.
To find out more,ย Contact Us.
