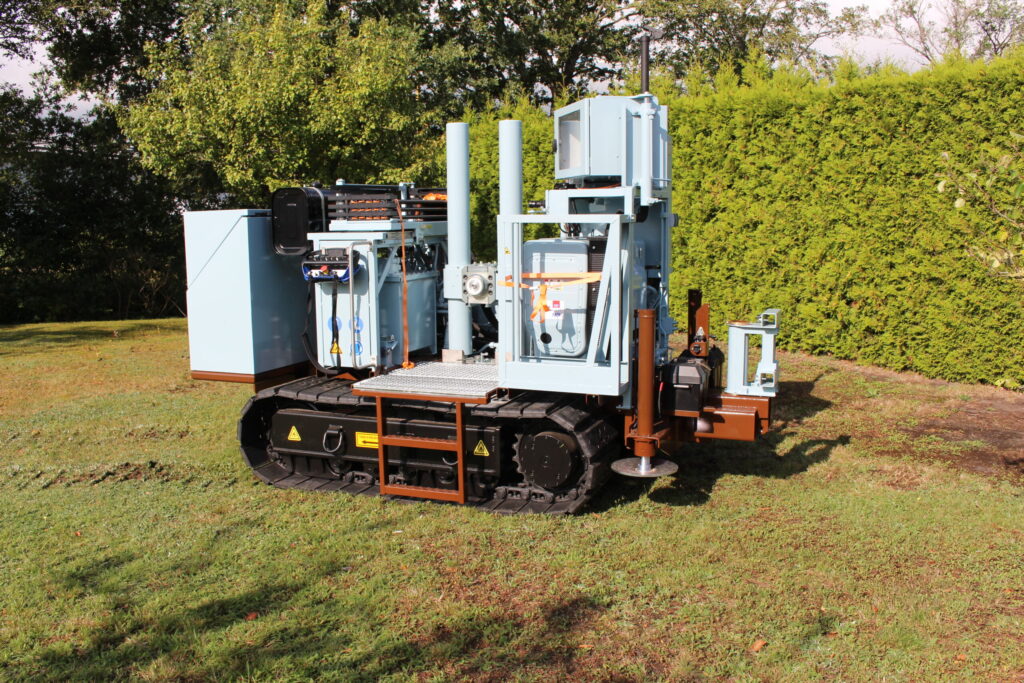

Midi CPT Crawler

Overview

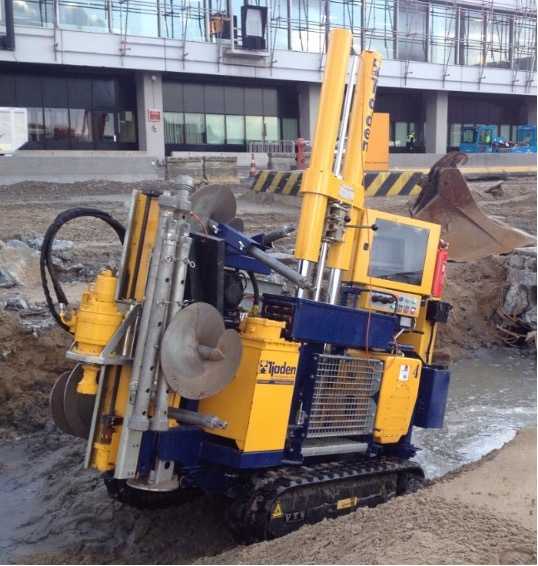

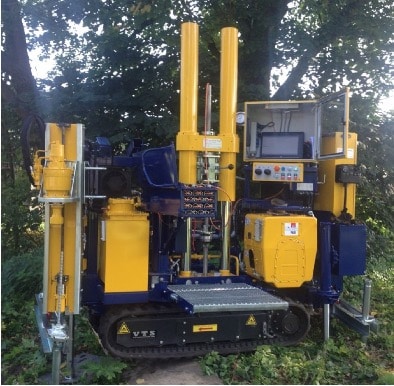

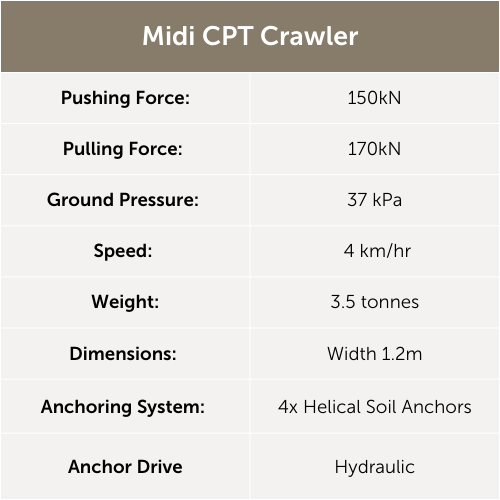

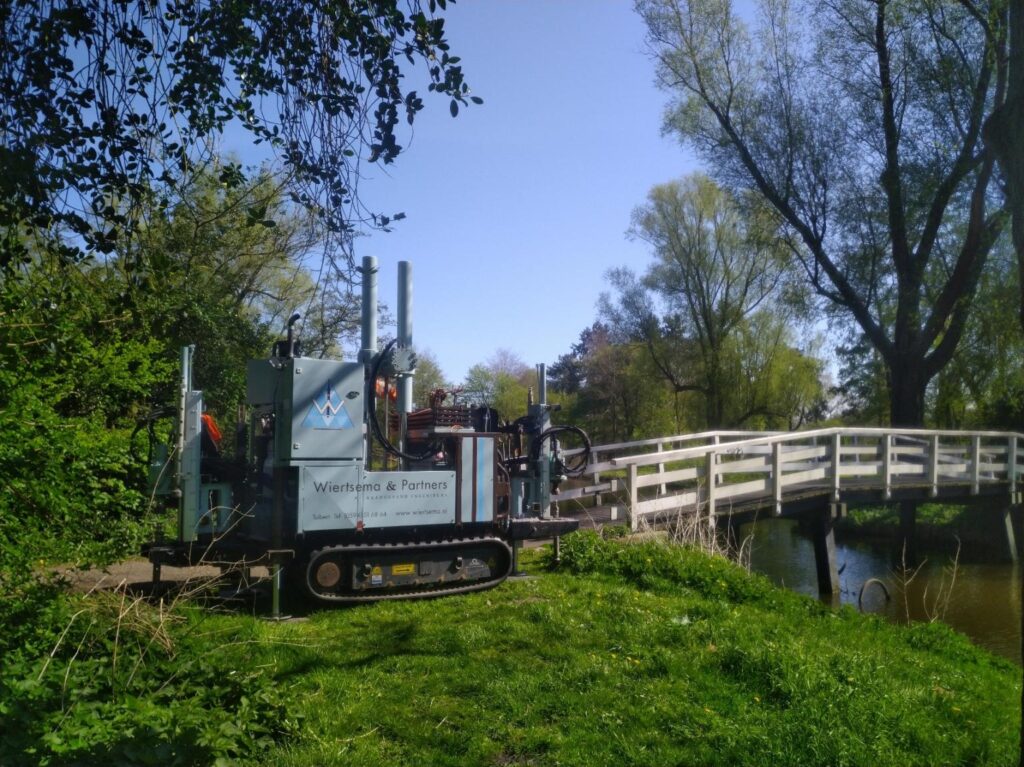

  • Midi CPT Crawler suitable for restricted access locations (1.2m wide) where large CPT vehicles cannot be deployed
  • Ideal for more compact soil and/ or deep depth requirements which demand a 200kN pushing force

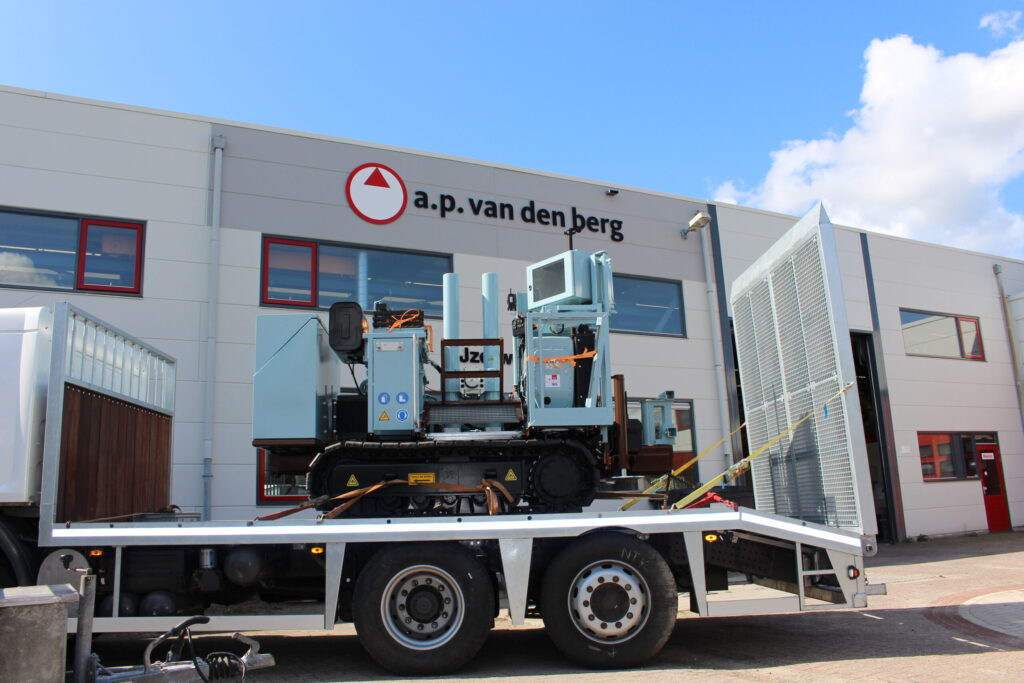

  • Highy manoeverable on rubber tracks and easily transported (3500kg) on a small truck
  • Pivoting hydraulically operated anchoring system

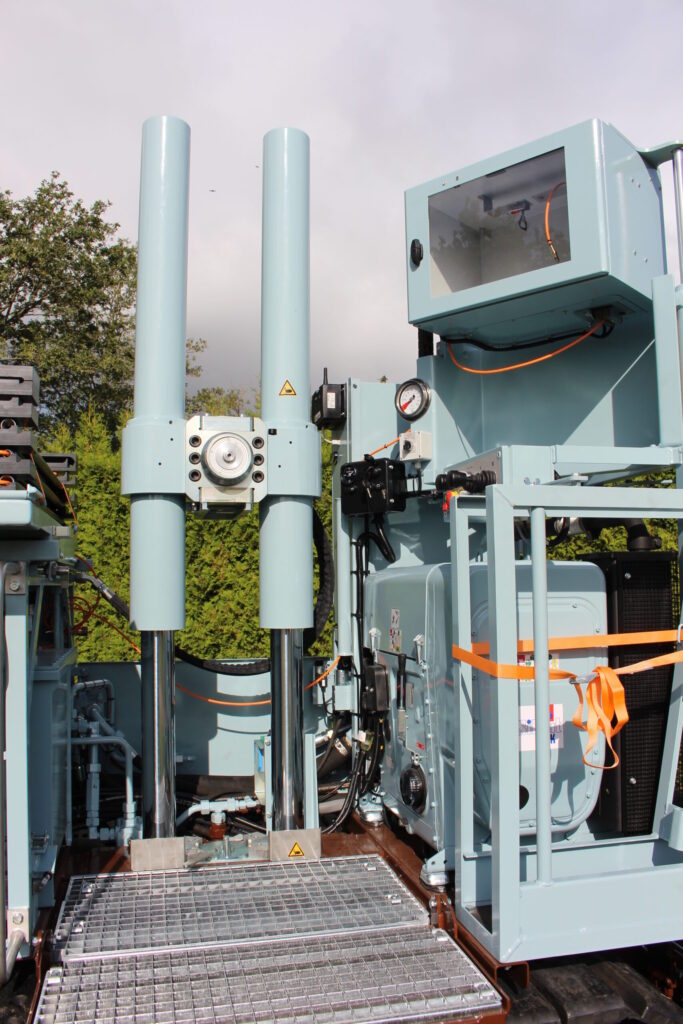

For Cone Penetration Testing, the HYSON 200kN pusher on the Midi CPT Crawler is suitable for making cone tests up to about 40 meters (depending on the soil conditions and reaction force).

The HYSON 200kN comes is two formats:

  • Professional – Hydraulic Push / Pull Clamp and Hydraulic Catch Clamp
  • Advanced – Mechanical Push / Pull Clamp and Hydraulic Catch Clamp

The hydraulic push/pull clamp facilitiates fast efficient operation including easily changing from 36 mm CPT rods to 56 mm casing tubes.

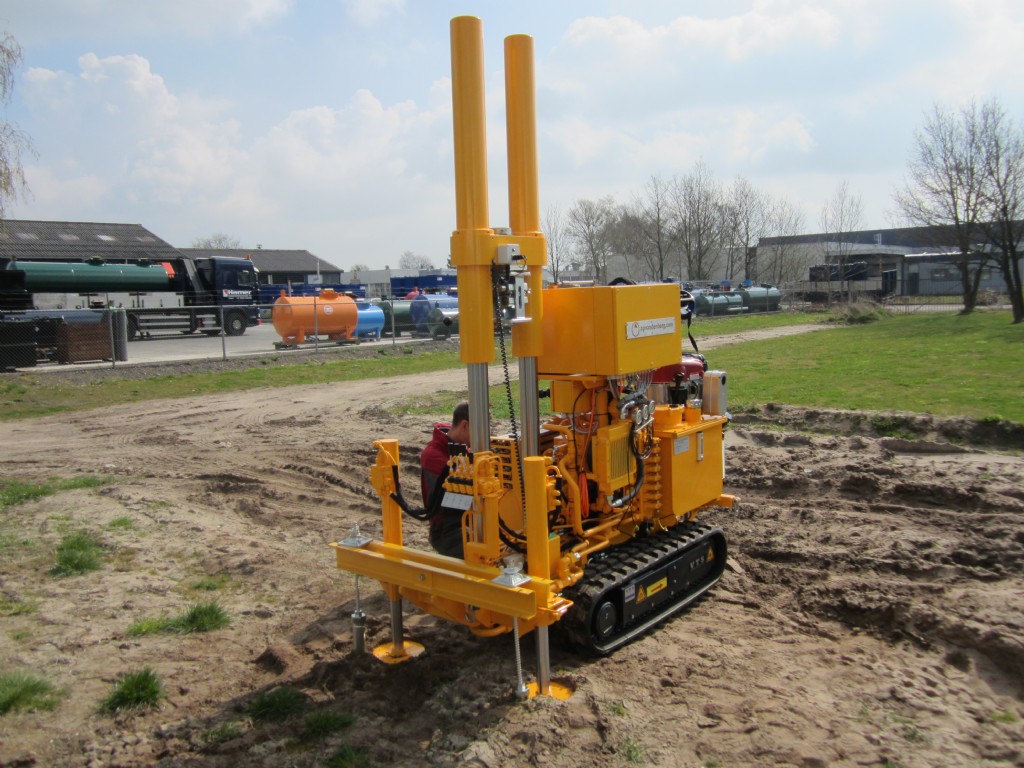

Four hydraulically operated soil anchors with two hinged anchoring systems provide the required reaction force.

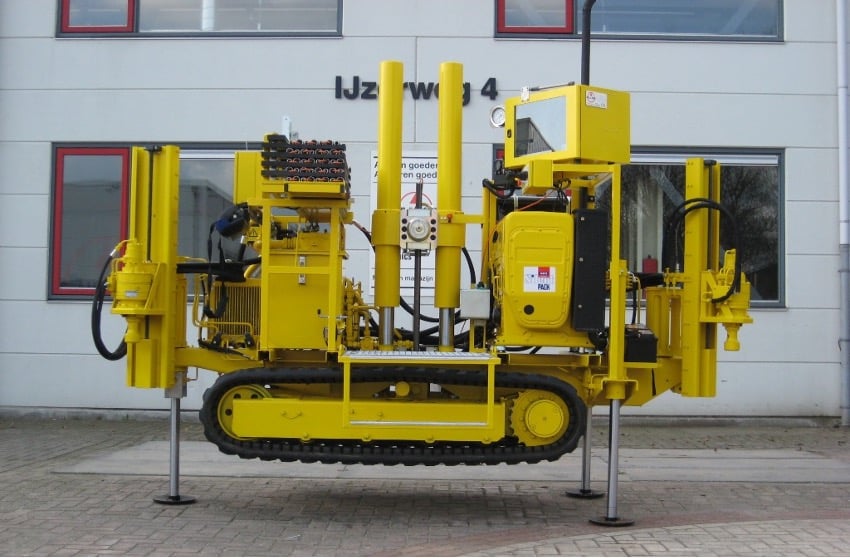

The hydraulic levelling legs provide stability and keep the tracks free from excessive loads during rod extraction.

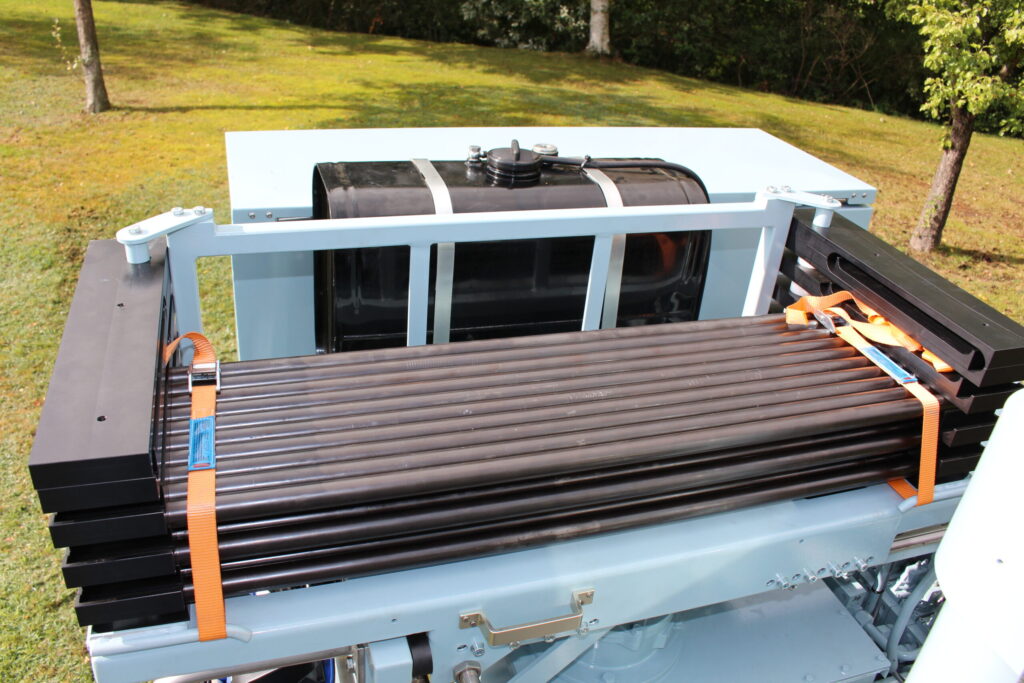

Even though the crawler is compact, there is still enough space for storage of cones, rods, friction reducers and wrenches. The laptop and data logger are stored in a weather protected cabinet.

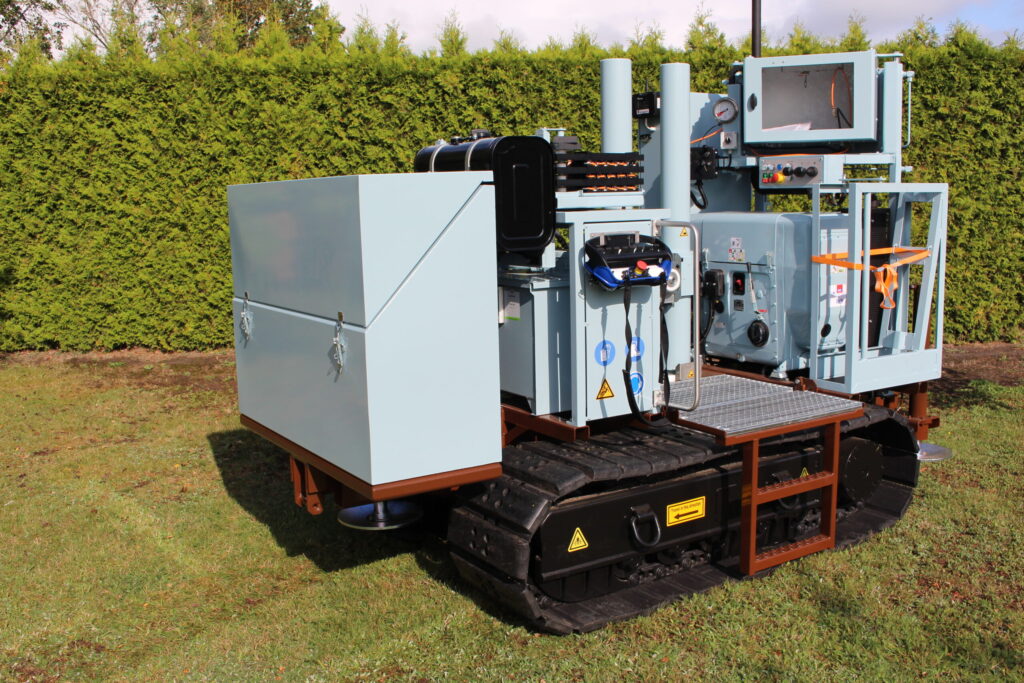

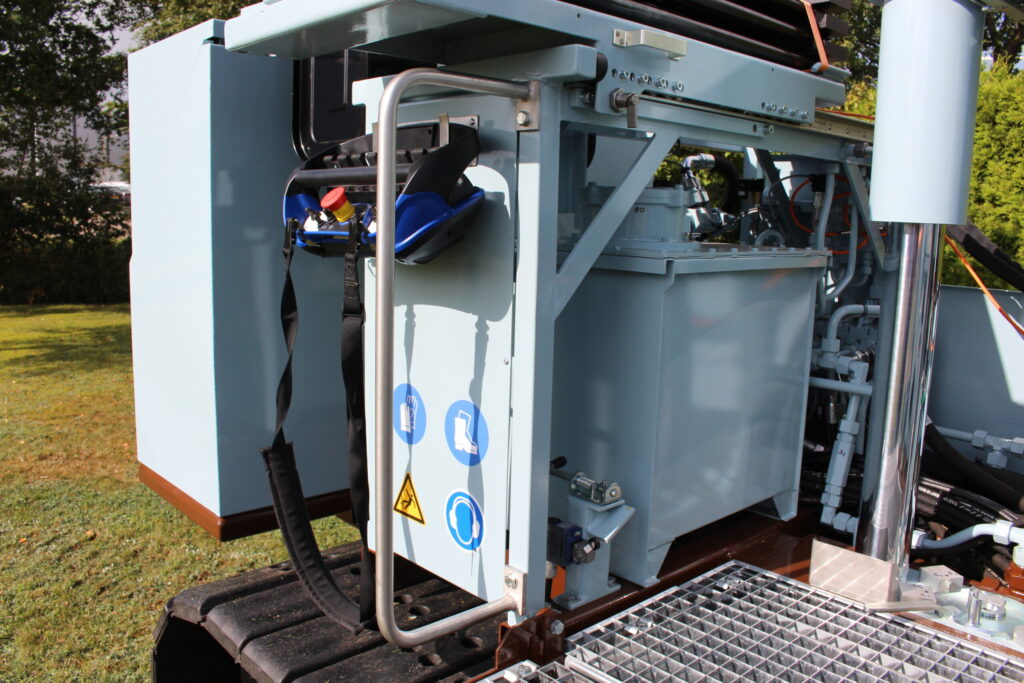

Remote control for operating the crawler from a safe distance is standard.

Options include:

  • Hydraulic track widening system for more stability during movement (from 1,000 to 1,200 mm)
  • Towing point

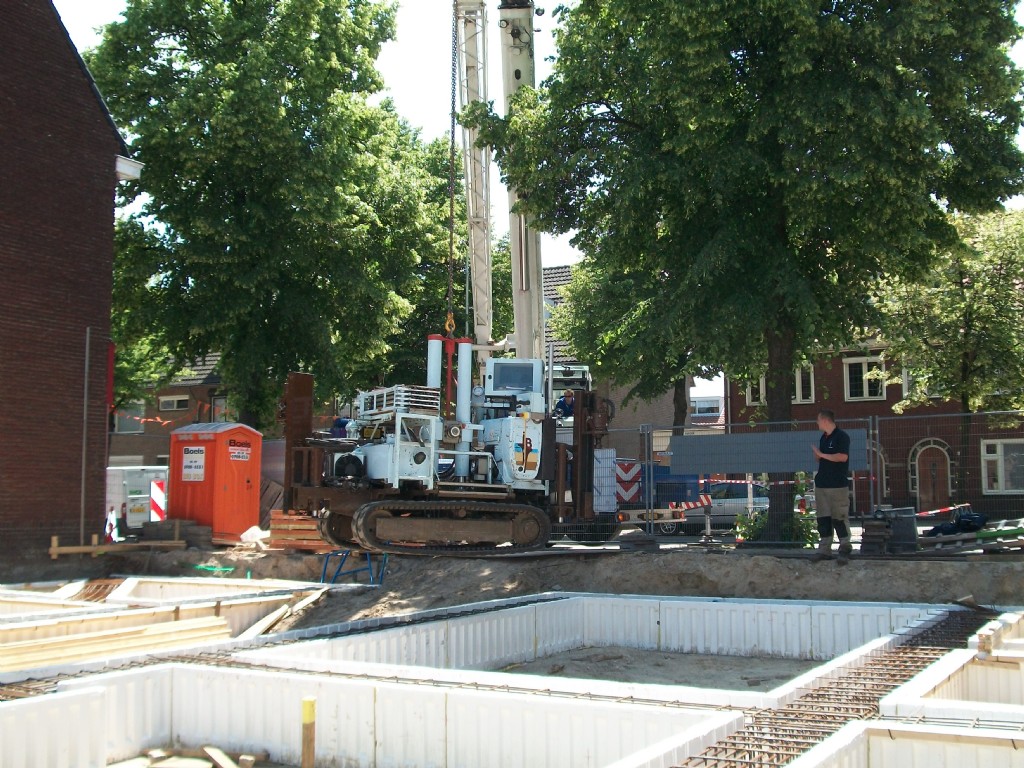

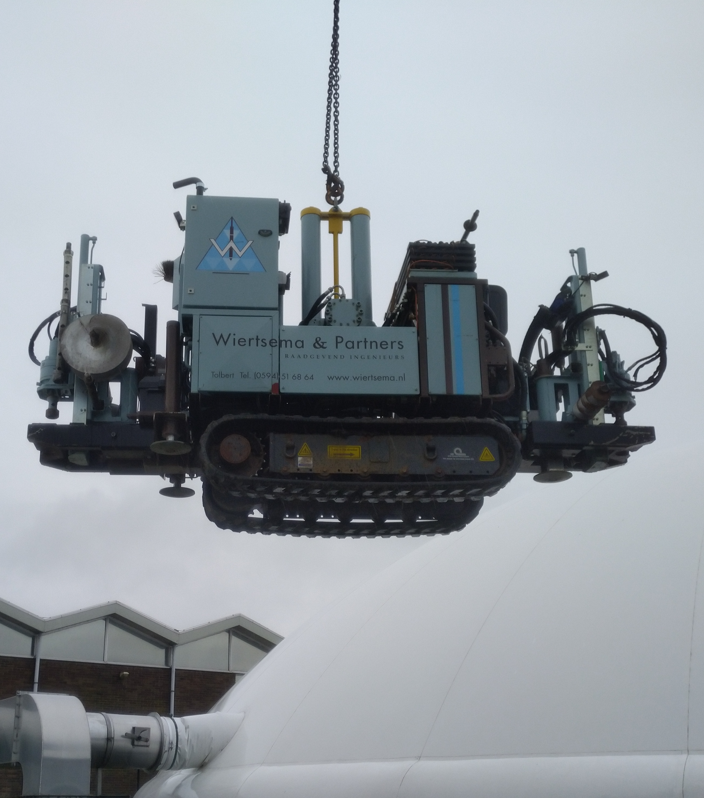

  • Lifting hooks to handle the Midi CPT Crawler by crane

Cone Penetration Test (CPT) Sales, Calibration, Service and Spare Parts

Insitutek are proud to represent A.P. van den Berg Cone Penetration Test (CPT) equipment in Australia, New Zealand and the Pacific Islands. Our CPT product range covers CPT rigs and pushers, data acquisition systems, click on plug in and play modules for down hole Electrical Shear Vane Testing (EVST), Seismic CPT (SCPT), Conductivity and Magneto and MOSTAP soil sampling. We provide a high level of client support, from technical pre-sale consultations and supply of equipment to commissioning, user training, after-sale technical support, servicing, repairs, and calibrations. Our service centre is also well stocked with spare parts and consumables.

To find out more, Contact Us.
